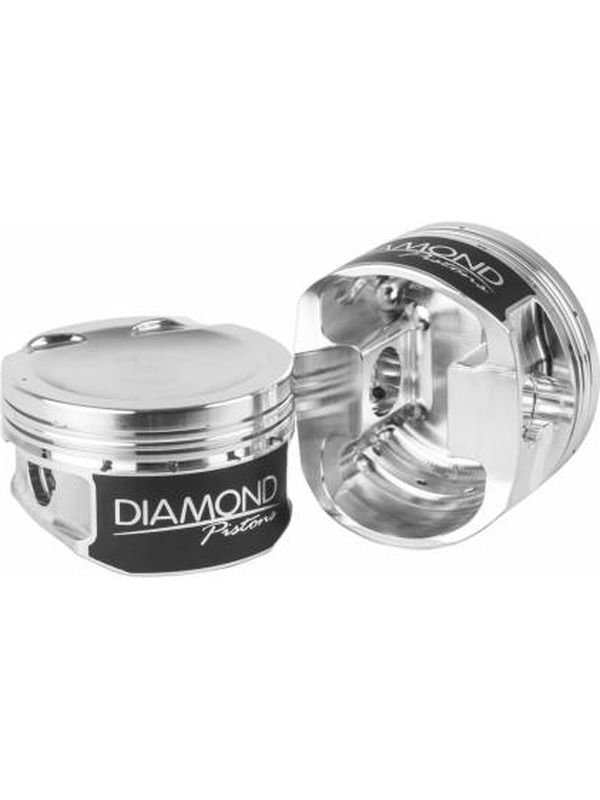

Diamond Pistons Dome Top Forged Pistons w/ Rings 3.640in
Piston Specifications:
- Block: 5.0L Coyote
- Bore: 3.640
- Stroke: 3.650
- Rod: 5.933
- Comp Heigh: 1.169"
- Weight: 388
- Pin: .866 x 2.500"
- CC's: Dome Top 8.0
- Comp Ratio With 57cc Head: 11.6
- Ring Set: 09053640
Piston Features:
- Designed to be used with 2011-17 5.0L Coyote cylinder heads
- 3D milling on piston crowns for ready to install finish
- Offset pins for quiet operation
- Top ring down dimension: .300"
- Ratios figured for .040 head gasket @ 8.937 Deck
- Premium 1.5mm x 1.5mm x 3.0mm ring package
- Premium 8620 .155W wrist pins included
- Oversized valve pockets - for larger than stock valve sizes
- Valve pocket depth: 0.075" intake and 0.075" exhaust
- Made from 2618 alloy
