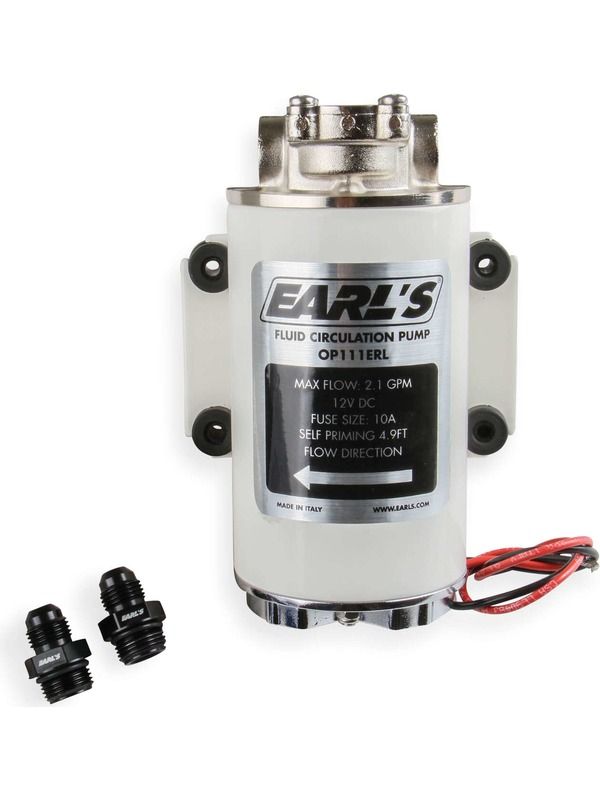

Earls Fluid Transfer Pumps Gear Oil 12 Volt 2.1 GPM Zinc Plated
Earls electric oil pump is ideal for circulating the gear oil through an external oil cooler - for cooling the differential or manual transmission. This heavy duty pump features a metal housing & is self-priming w/ a flow rate of up to 2.1 gallons per minute. The compact design is durable and has a continuous duty rating (see temperature range shown below). This pump includes (2) -6 AN Male to BSPP adapter fittings. Ideal for use with Earl's UltraPro oil cooler along w/ AN hose & hose ends. Features: Electric Oil Pump Amp Draw: 10 Amps Flow Rate: Up to 2.1 GPM (7.9 LPM) Pressure: 72.5 PSI (5 Bar) Max Maximum Oil Weight: 90W Gear Oil Weight 5.5 lb (2.5 kg) Voltage: 12-Volt DC Brass Housing w/ Nickel Plated Finish Temperature Range: 14 to 160 F (-10 to 71 C) Continuous Duty; 265 (130 C) Max -Intermittent Use Overall Dimensions: 6-1/2 Tall x 4-5/8 Wide x 3-3/4 Deep Mounting Bolt Pattern: 4-Bolt w/ 2-1/4 Tall x 3-3/4 Wide Rubber Vibration Isolators on Each Mount Ideal for Cooling Manual Transmission or Differential Using External Oil Cooler Inlet & Outlet on Pump: 3/8 BSPP (British Standard Pipe Parallel) straight thread Includes (2) -6 AN Male to 3/8 BSPP Adapter Fittings Self-Priming Up to 4 Ft. of Vertical Height Seal Material: FKM Rubber Use w/ Relay & Fuse (available separately)
