Gedore 8250-200 JC HD Combination Pliers 6707310B

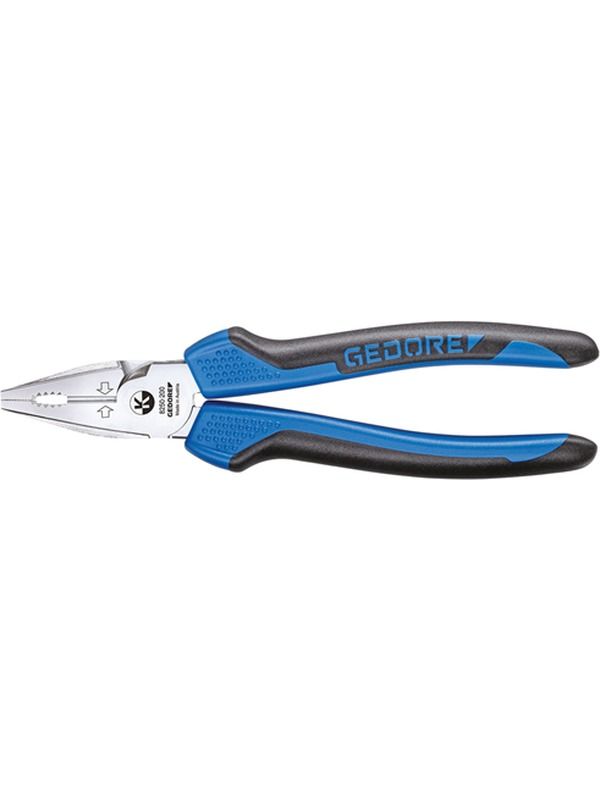

Gedore 8250-200 JC HD Combination Pliers

• Acc. to DIN ISO 5746

• For heavy continuous use

• High leverage for easier work

• Induction hardened precision cutting edges, extra long, cutting edge hardness 62 - 64 HRC

• For round and flat material

• For all wires, also hard wire/piano wire, 1.6 mm

• GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed

• JC = chrome-plated, with 2-component handle covers

• Forceps means 35% less effort

• Gripping surface with file-cut for a particularly effective hold

• Roughly toothed gripping surfaces for securely holding screws, pipes etc.

Dimensions and weights

• Total width [mm]: 53 mm

• Total height [mm]: 23 mm

• Total length [mm]: 200 mm

• Nominal width [mm]: 53 mm

• Nominal height [mm]: 23 mm

• Nominal length [mm]: 200 mm

• Net weight [kg]: 0,36 kg

Technical characteristics

• Design non-sparking: No

• Standard: DIN ISO 5746

• Jaw shape [mm]: flat jaws

• Jaw length L3 [mm]: 39,5 mm

• Bevel: with

• Joint types: inserted joint

• Handle design: 2C

• Handle colour: blue

• Hardening process: Induction hardened

• Width of head 1 [mm]: 27,0 mm

• Head thickness [mm] T1: 12,4 mm

• Material: Heat-treated steel

• Compliance: compliant

• Blade shape: with facet

• Hardness of cutting edge: 62 - 64 HRC

• Cutting values: Piano wire: 2,2 mm / 11 AWG Hard wire: 2,8 mm / 9 AWG Medium hard wire: 3,8 mm / 7 AWG Soft wire: 6 mm / 3 AWG Cu cable, multi wire cross section: 25 mm Multi-wire cable : 13 mm

• Width of centres W4 [mm]: 6,5 mm
