Gedore 8316-200 JC Side Cutters 6745080B

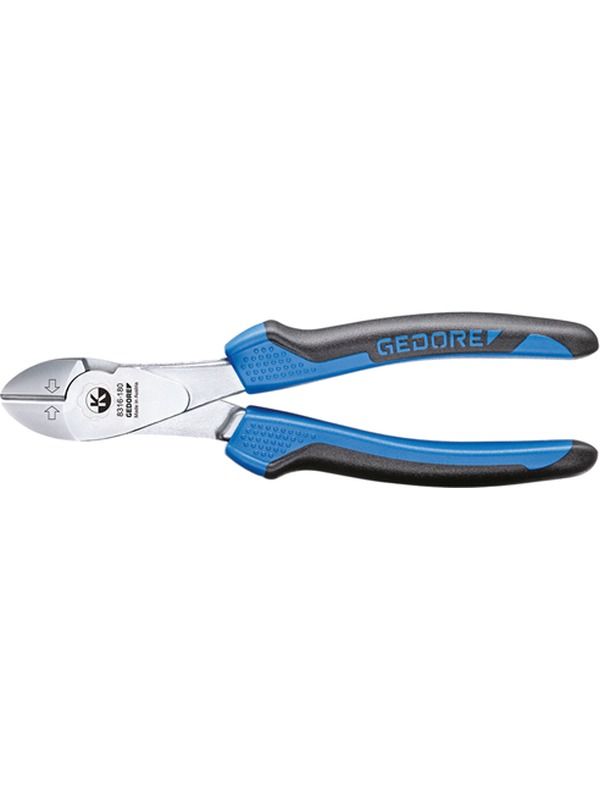

Gedore 8316-200 JC Side Cutters

• Acc. to DIN ISO 5749

• Good lever action for easy cutting

• GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed

• Inductively hardened cutting edges (63 - 64 HRC) ensure constant cutting power over a long time span.

• Highest cutting performance with less effort due to the optimum interaction of cutting geometry, eccentric rivet bearing and ergonomic handle design.

• JC = chrome-plated, with 2-component handle covers

Dimensions and weights

• Total width [mm]: 55 mm

• Total height [mm]: 23 mm

• Total length [mm]: 200 mm

• Nominal width [mm]: 55 mm

• Nominal height [mm]: 23 mm

• Nominal length [mm]: 200 mm

• Net weight [kg]: 0,34 kg

Technical characteristics

• Design non-sparking: No

• Standard: DIN ISO 5749

• ESD Yes/No: No

• Bevel: with

• Joint types: applied joint

• Handle design: 2C

• Handle colour: blue

• Hardening process: Induction hardened

• Width of head 1 [mm]: 28,0 mm

• Head height 1 [mm]: 22 mm

• Head thickness [mm] T1: 11,0 mm

• Material: Heat-treated steel

• Surface: chrome-plated

• Opening spring present: No

• Compliance: compliant

• Blade shape: with facet

• Hardness of cutting edge: 63 - 65 HRC

• Cutting edge length [mm]: 22 mm

• Cutting values: Piano wire: 2,5 mm / 13 AWG Hard wire: 3 mm / 9 AWG Medium hard wire: 4,2 mm / 6 AWG
