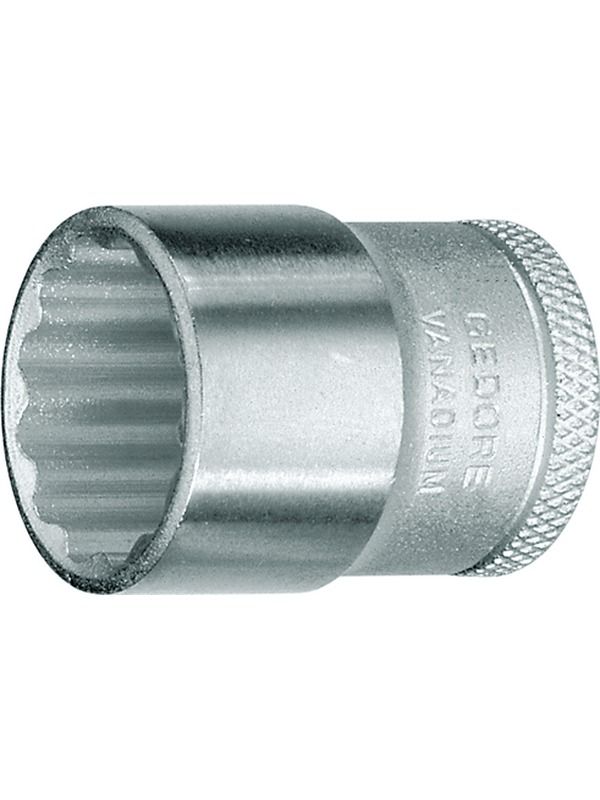

Gedore D30 3/8in Drive Imperial Socket UD Profile 19/32in 6233180C
MPN: 6233180C
|
RPI: 3260907
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time
(Prior to Dispatch)
(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Type in your postcode or suburb to get an estimate on postage cost.
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click here
Gedore D30 3/8in Drive Imperial Socket UD Profile 19/32in
OverviewSquare drive as per DIN 3120 - C 10, ISO 1174, with ball retention groove
Manually operated, with non-slip cross knurling
Dimensions and weights
Total width [mm]: 21 mm
Total length [mm]: 30 mm
Nominal width [mm]: 21 mm
Nominal length [mm]: 30 mm
Net weight [kg]: 0,039 kg
Technical characteristics
Drive mount, square [metric]: 10,0 mm
Drive connector square [inch]: 3/8"
Standard: DIN 3120-C 10 ISO 1174
Insert- 1: 21,0 mm
Insert- 2: 19,7 mm
Working length: 30,0 mm
Operating depth: 12,5 mm
Material: Chrome-vanadium steel 31CrV3
Surface: polished, chrome-plated
Compliance: compliant
Width across flats 1 [AF]: 19/32"
Safety: Ball Catching Cricket
