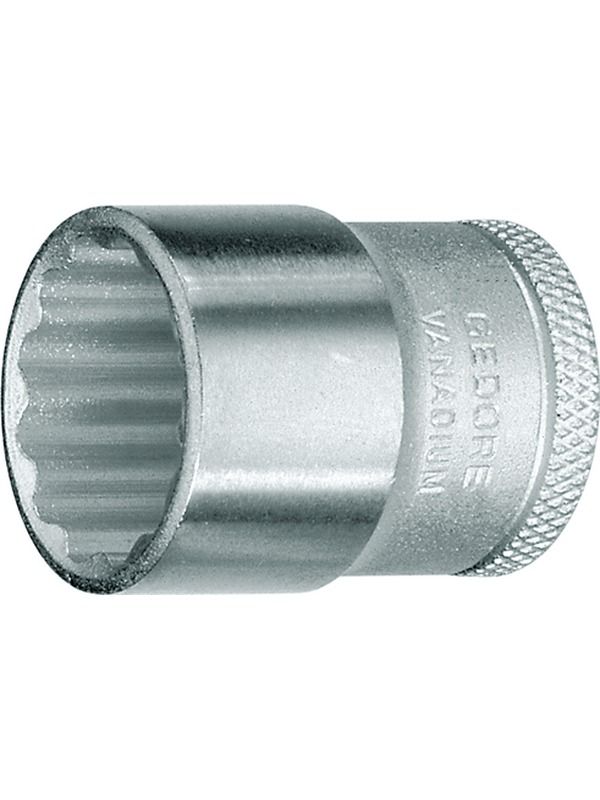

Gedore D30 3/8in Drive Metric Socket UD Profile 11mm 6230670C

Gedore D30 3/8in Drive Metric Socket UD Profile 11mm

• Acc. to DIN 3124, ISO 2725-1

• Square drive as per DIN 3120 - C 10, ISO 1174, with ball retention groove

• Manually operated, with non-slip cross knurling

• GEDORE vanadium steel 31CrV3, polished, chrome-plated

• * not standardised

Dimensions and weights

• Total width [mm]: 18 mm

• Total height [mm]: 18 mm

• Total length [mm]: 28 mm

• Nominal width [mm]: 17,5 mm

• Nominal length [mm]: 28 mm

• Net weight [kg]: 0,03 kg

Technical characteristics

• Drive mount, square [metric]: 10,0 mm

• Drive connector square [inch]: 3/8"

• Standard: DIN 3124 ISO 2725-1 DIN 3120-C 10 ISO 1174

• Insert- 1: 16,0 mm

• Insert- 2: 17,5 mm

• Working length: 28,0 mm

• Operating depth: 9,0 mm

• Material: Chrome-vanadium steel 31CrV3

• Surface: polished, chrome-plated

• Compliance: compliant

• Width across flats 1 [mm]: 11

• Safety: Ball Catching Cricket
