Gedore D30 3/8in Drive Metric Socket UD Profile 21mm
Gedore D30 3/8in Drive Metric Socket UD Profile 19mm
Gedore D30 3/8in Drive Metric Socket UD Profile 20mm 6231640C
MPN: 6231640C
|
RPI: 3260901
or 4 interest-free payments of
$7.06
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time
(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Type in your postcode or suburb to get an estimate on postage cost.
Save more when you buy more with combined postage
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
| Brand |
|
| GTIN |
6006394631640 |
| MPN |
6231640C |
| Handling Time |
7-10 Business Days |
| Return Policy |
No Return (Unless Manufacturer Defect) |
| Warranty |
Manufacturer Warranty |

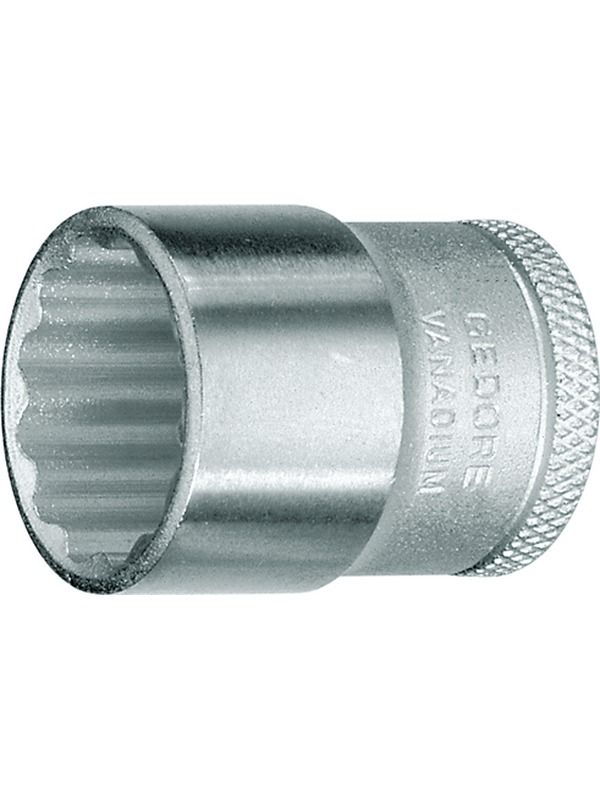

Gedore D30 3/8in Drive Metric Socket UD Profile 20mm
Overview
Acc. to DIN 3124, ISO 2725-1
Square drive as per DIN 3120 - C 10, ISO 1174, with ball retention groove
Manually operated, with non-slip cross knurling
GEDORE vanadium steel 31CrV3, polished, chrome-plated
* not standardised
Specifications
Dimensions and weights
Total width [mm]: 27 mm
Total height [mm]: 27 mm
Total length [mm]: 31 mm
Nominal width [mm]: 27,2 mm
Nominal length [mm]: 31 mm
Net weight [kg]: 0,074 kg
Technical characteristics
Drive mount, square [metric]: 10,0 mm
Drive connector square [inch]: 3/8"
Standard: DIN 3124 ISO 2725-1 DIN 3120-C 10 ISO 1174
Insert- 1: 27,2 mm
Insert- 2: 24,5 mm
Working length: 31,0 mm
Operating depth: 12,5 mm
Material: Chrome-vanadium steel 31CrV3
Surface: polished, chrome-plated
Compliance: compliant
Width across flats 1 [mm]: 20
Safety: Ball Catching Cricket
