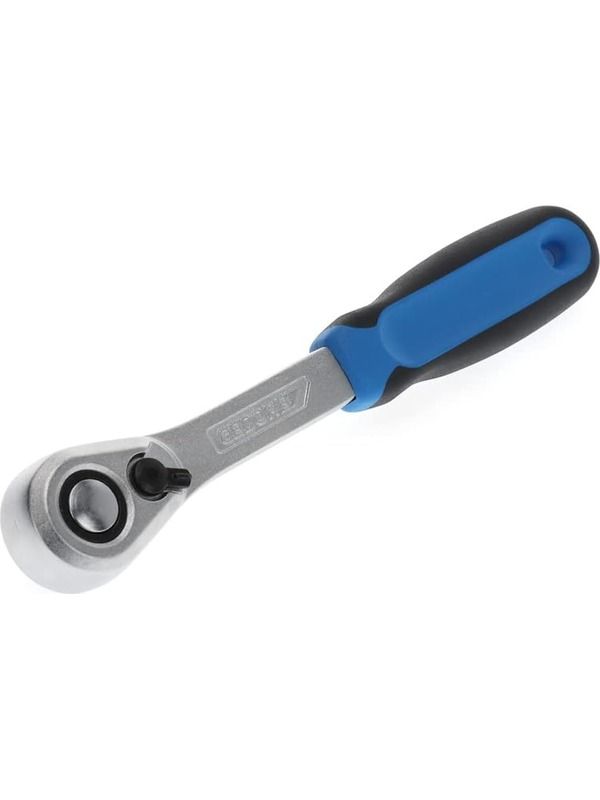

Gedore Reversible Ratchet 3/8in 200mm 3093 U-20 1556800

Gedore Reversible Ratchet 3/8in 200mm 3093 U-20

• Universal use in industry and automotive, even in confined spaces

• Design according to DIN 3122, ISO 3315

• Small, teardrop-shaped head for tightest screwing positions

• Finely toothed (60 teeth), with switch lever and push button release

• Return angle 6

• Non-slip 2-component handle with hanging hole

• For hand-operated sockets and connecting parts with square drive according to DIN 3120 - C 10, ISO 1174, with ball lock

• Vanadium steel 31CrV3, chrome-plated

Technical Characteristics

• Square drive [metric]: 10 mm

• Square drive [inch]: 3/8"

• Number of teeth: 60

• Locking type: ball lock

• Standard: DIN 3122 ISO 3315

• Push button release: Yes

• Handle material: 2-component

• Ratchet head height: 29.7 mm

• Material: chrome vanadium steel 31CrV3

• Surface: chrome-plated

• Compliance: compliant

• Return angle: 6

• Switch type: Toggle lever

Dimensions & Weights

• Total width [mm]: 34 mm

• Total height [mm]: 30 mm

• Total length [mm]: 200 mm

• Nominal width [mm]: 34 mm

• Nominal height [mm]: 30 mm

• Nominal length [mm]: 200 mm

• Net weight [kg]: 0.292 kg
