GM Performance Engine Assembly For Chevrolet 350 HO Deluxe 333 HP 19420879
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.

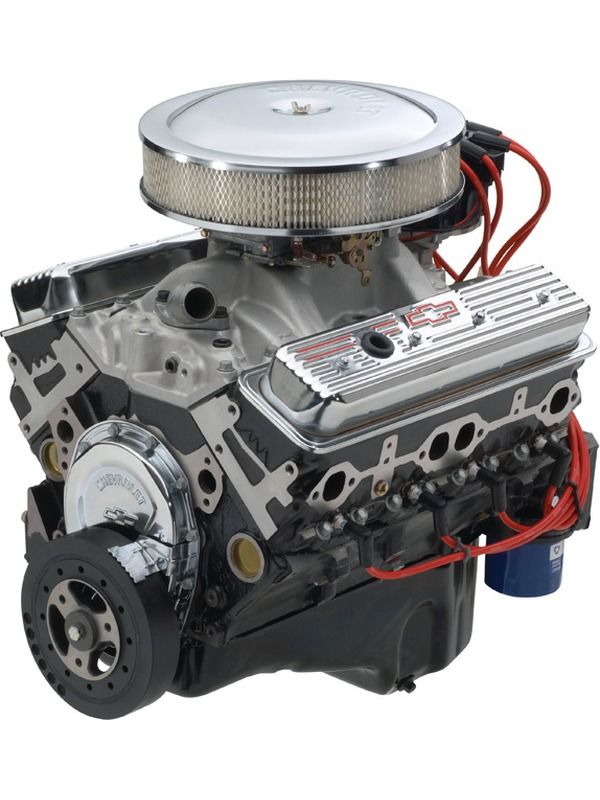

GM Performance Engine Assembly For Chevrolet 350 HO Deluxe 333 HP
350 HO Deluxe Forget rebuilding! Our 350 HO is assembled with all-new parts and high-flow heads, giving you more power than just about any production-spec Small-Block ever installed at the factory: 333 hp and a satisfying 381 lb.-ft. of torque. Its affordable power with dependability you can count on. A cast-iron block with four-bolt main caps is the foundation for the 350 HO, which is topped with iron Vortec heads fitted with 1.94/1.50-inch valves. Its durable rotating assembly has aluminium pistons delivering a 9.0:1 compression ratio, while a hydraulic flat-tappet camshaft requires no periodic lash adjustments. The intake manifold, carburettor and distributor are included, but not installed. TECH SPECS Part Number: 19420879 Engine Type: Chevy Small-Block V-8 Displacement (cu in): 350 Bore x Stroke (in): 4.000 x 3.480 Block (P/N 10105123 ): Cast-iron with 4-bolt main caps Crankshaft (P/N 10243070 ): Nodular iron Connecting Rods (P/N 10108688 ): Powdered metal steel Pistons (P/N 12514101): Cast-aluminium Camshaft Type (P/N 24502476 ): Hydraulic flat tappet Camshaft Lift (in): .435 intake / .460 exhaust Cylinder Heads (P/N 12558060 ): Vortec iron; 64cc chambers Valve Size (in): 1.940 intake / 1.500 exhaust Compression Ratio: 9.0:1 nominal Rocker Arms (P/N 10089648 ): Stamped steel Rocker Arm Ratio: 1.5:1 Water Pump (P/N 19201601 ): Cast iron, long-style Flexplate (P/N 14088765 ): 12.750" Recommended Fuel: Premium pump Ignition Timing: 32 Total @ 4,000 rpm Maximum Recommended rpm: 5,100 Balanced: External Intake Manifold (P/N 12496820 ): Dual Plane INSTALLATION NOTES Comes with 12.750" externally balanced 153-tooth automatic transmission flexplate. Requires externally balanced flywheel for manual transmission. Has right-side oil dipstick Requires fuel line from fuel pump to carburettor Fuel pump pressure is pre-set; fuel pressure regulator not required Some assembly and minor engine tuning required Designed for pre-1976 street vehicles or any off-road vehicle Not intended for marine applications
