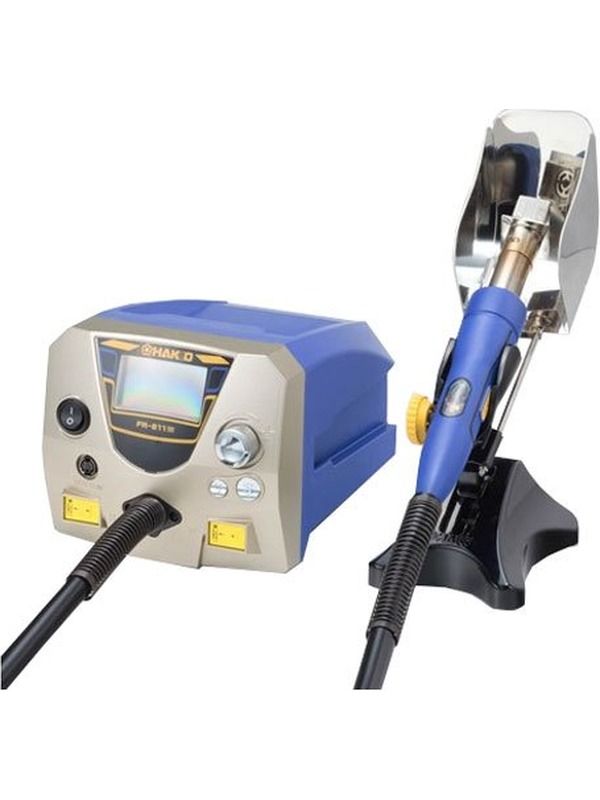

Hakko FR-811 SMD Hot Air Rework Station

• Possible to make full-scale thermal profiles with 6-zone hot air and a bottom heater
  FR-811 can provide 6 zones in which temperature, time, and air flow are controlled. Therefore FR-811 can make a full-scale thermal profile which is close to reflow profiles made by a reflow oven.


• Record thermal data
  By connecting a thermocouple included with FR-811, the temperature of the component or circuit board can be measured and recorded. In addition, if "TC LINK" is set, the heater output can be automatically controlled so that the temperature of the thermocouple attached to the component or circuit board follows the set profile


• Operation on a PC for various settings
  By connecting FR-811 and a computer with a USB cable and using the dedicated software which comes as standard, a set thermal profile and actual temperature change can be shown in a graph in real time. Also, change of thermal profile and fine adjustment in a profile can be made on a computer operation. In addition, the set values and graph can be saved in csv format.


• Linked operation with bottom heater
  FR-811 can control on/off timing and output of the bottom heater

High power and large volume hot air for quick removal of components

A tool that can provide powerful hot airflow for repairing high heat capacity circuit boards that require high blow volume and high output, and sufficient hot airflow for appropriate blow volume and high output for high-density mounting substrates.

New user friendly functions for SMD rework

• New type of nozzles for improving temperature characteristics
  The new nozzles improve work efficiency with uniform heating by hot air convection inside the nozzle which is created due to vents on the nozzle top. (Only with BGA nozzles)


• Vacuum pickup function
  The vacuum pickup function is to pick up a component with a suction pad and vacuum. It will pick a component only after the hot air melts solder joints. This can avoid an error to peel off the land by removing a component with excessive force.


• Pickup indicator
  By pre-setting pickup function, a component can be picked up automatically when solder is melted. At the same time, the indication comes up and the moment of picking up will be visible. Even a component and solder joints can not be seen as covered by a nozzle, easy and safe picking up is possible

Interface designed for intuitive operation. Possible to link to a PC

• Easy-to-read LCD
  Equipped with a high-visibility LCD to make it easy to check the various product settings or operation status. Indications are displayed using graphics as well as letters and numbers so information can be checked intuitively.


• Easy-to-operate multi-direction control knob
  The multi-direction control knob makes it easy to make and change settings shown in the LCD. There are several ways of knob movements, dialing, pressing, and tilting up and down and left to right for quick operation.


• Link to a PC (A USB I/F terminal available)
  A USB I/F terminal is available to link to a computer. The dedicated software, which can display and record various settings or temperature data on a computer screen in real time, is included.


• A USB device terminal for easy data transfer
  Data can be transferred through a USB memory even without a computer

Hakko FR-811 SMD Hot Air Rework Station includes

• Station with handpiece
• Grip stand assembly
• Vacuum pipe control knob (with screw)
• Pads (qty 2 each of 3 mm, 5 mm, 7.6 mm)
• USB cable
• Software (CD-ROM)
• Thermocouple
• Heat resistant pad
• Power Cord
• Temperature distribution chart
• Instruction manual

Hakko FR-811 SMD Hot Air Rework Station Resources & Literature Downloads
(Please click title to download)

User Instruction manual
