Hakko FX971 Compact Soldering Station FX971-61
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.

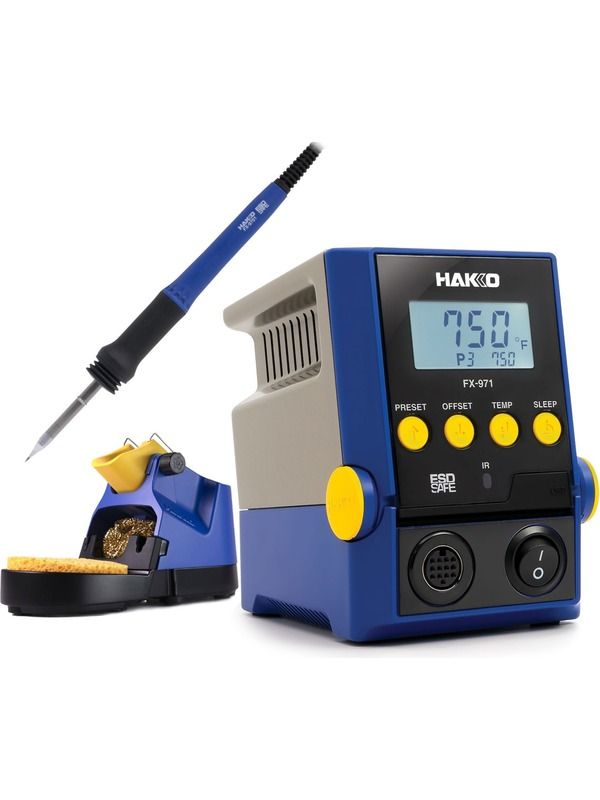

Hakko FX971 Compact Soldering Station
OverviewA compact and high power station with space-saving design.
With 100 W of power in a compact body, it performs a wide range of soldering works.
With improved sensor sensitivity and a design that smoothly transfers the heat from the heater to the tip, the tip temperature has become stable and it ensures better soldering.
The system enables soldering in a shorter time and improves work efficiency.
It shows information such as set temperature, tip's sensor temperature, and preset setting, clearly and widely. The viewing angle is wide, and the high-brightness display provides high visibility.
Various settings can be easily configured using four buttons.
Tilt mechanism for easy viewing and operation of the screen display, depending on the installation location, e.g., on or under the workbench or on the rack.
The well-selected line-up of soldering tips. Soldering that was previously impossible or time-consuming can be improved with the tips in new shapes. (note tips not included).
Automatic calibration and correction can be completed by sending the measured temperature value of the thermometer (FG-100B/FG-101B), via infrared.
By connecting the station to the PC, the tip set temperature, calibration/correction, and the temperature history of the tip during operation are recorded on the PC, enabling management with zero human error.
The built-in sensor of the tip inside makes it possible to use auto-sleep and auto-shutoff functions without connecting the station and the iron holder, and it helps to lay out the station and iron holder freely in the working space.
he newly designed iron holder allows easy and safe tip replacement with a tip removing attachment and tip insertion holder.
Soldering iron stays safe even without an iron holder base during maintenance.
NOTE: T39 TIPS NOT INCLUDED - AVAILABLE TO PURCHASE HERE
Features100W 120 F - 850 F
60+ Tip Size and Shapes
Compact and Stackable Design
HAKKO Control Software
Wireless IR Offsetting
5 Preset Temps
Low Temp Alarm
Sleep Timer
Auto Shut-Off
Password Lockout
Station
Handpiece (FX-9701)
Iron holder (FH-215, with cleaning sponge and wire)
USB cable
Power cord
Instruction manual
NOTE: TIPS ARE NOT INCLUDED
Specifications| FX-971 |
| 100 W |
| 50 to 450C |
| +-3C (At idle temperature) |
Station
| AC 24 V |
| When tilted : 93 (W) x 126 (H) x 133 (D) mm When not tilted : 93 (W) x 126 (H) x 123 (D) mm |
| 1.2 kg |
Soldering Iron
| 95 W (24 V) |
| 2 |
| 2 mV |
| Composite heater |
| 1.2 m |
| 206 mm (with T39-D24 tip) |
| 31 g (with T39-D24 tip) |
* Total length and weight are measured without cord.
