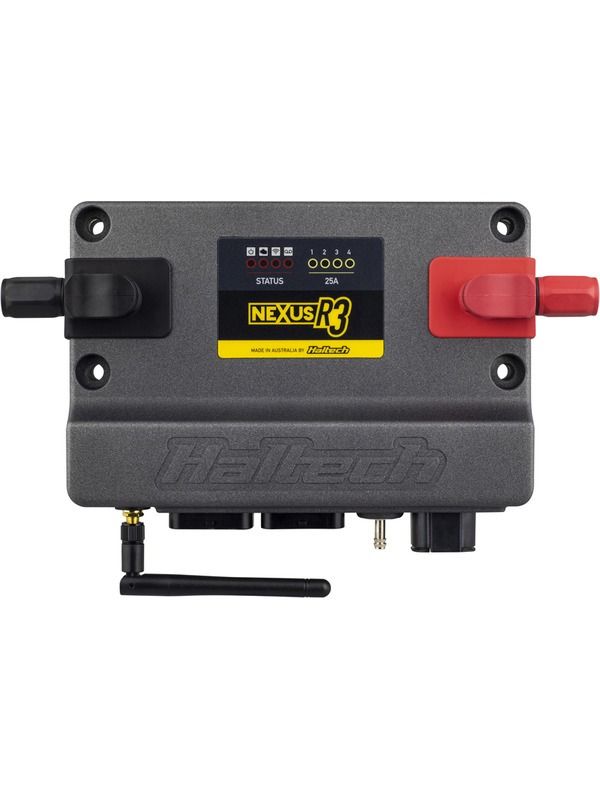

Haltech Nexus R3 VCU HT-193000

Haltech Nexus R3 VCU

Nexus R3 - An ECU, PDM, Wifi Module, Wideband Controller and data logger all in one.

VCU OVERVIEW Nexus R3 combines the functionality of a power distribution module, a data logger, a wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).

• * 4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
• * 8 x peak/hold injector drivers (can be used as low side drive outputs)
• * 8 x low current ignition outputs (can be used as low side drive outputs)
• * 6 x low side drive outputs, PWM capable (DPOs)
• * 6 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
• * 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
• * Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
• * 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
• * 1 x on-board wideband controller, supporting NTK and LSU4.9
• * 1 x on-board 4 bar MAP sensor
• * 2 x CAN ports with switchable termination

• ^VCU FEATURES
• * Controlled via NSP (Nexus Software Programmer)
• * Long Term Learning
• * Stepper Motor Control
• * 4D Closed Loop Boost Control
• * Closed Loop CO2 Control
• * Rotational Idle
• * Launch Control
• * Traction Control
• * Anti-Lag
• * Dual Knock Control
• * Trans Brake Control
• * Race Timer
• * Multi Stage Fuel Injection
• * Multi-level Engine Protection
• * 6 Stage Nitrous Control
• * 4-sensor variable cam control
• * Intake Air Bleed Control
• * Flat Shift Control
• * Shock Travel & Ride Height Control
• * Advanced Torque Management
• * On-board Wi-Fi
• * On-board datalogging (128MB)
• ^AUTOMATIC TRANSMISSION CONTROL
• * Ford AODE/4R70W
• * GM 4L60E
• * GM 4L80E
• * Toyota A340E
• * Lenco
• * Liberty
