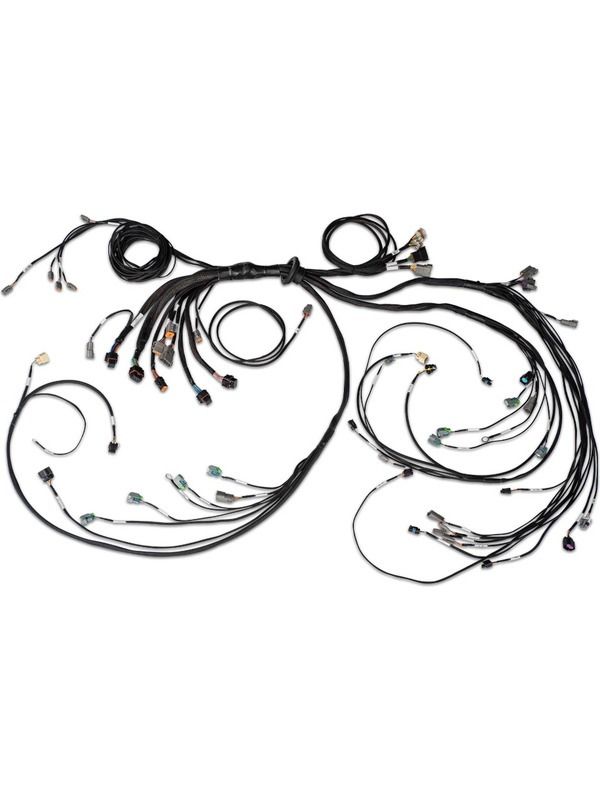

Haltech Nexus R5 LSx DBW Terminated Harness HT-186205

Haltech Nexus R5 LSx DBW Terminated Harness

Nexus R5 LSx DBW Terminated Harness - DBW ready, EV6 primary injector plugs.

Plug and play with the OEM Ignition sub-harness on the engine.

Includes

3 x Alternator Adaptors (Bosch/Yazaki/Delco)

DTM & DT style opposing connectors and pins



Terminated harness suits LSx engines with DBW, and incorporates PDM functionality.

• * EV6 primary injector plugs.
• * Plug and play with the OEM Ignition sub-harness on the engine. (Required)
• ^ Includes
• * 1 x HT-186205 Terminated Harness
• * 1 x Pack of DTM/DT connector and pin set to terminate to sensors, solenoids and other devices
• * 2 x DTP-2 connectors with pre-crimped 12AWG wires to use for fuel pump and thermofan
• * 1 x DT-8 connector with pre-crimped 18AWG wires
• * 1 x 2 pin Bosch alternator adaptor harness
• * 1 x 2 pin Yazaki alternator adaptor harness
• * 1 x 4 pin Delco alternator adapter harness

• * 8 x Primary injectors (EV6)
• * Breakout plug for 8 x Secondary injectors
• * 2 x outputs available for Tertiary injection
• * Universal breakout for accelerator pedal wiring
• * Single / Dual boost solenoid control
• * Dual wideband sensor control (R5 onboard wideband controller)
• * Flex fuel sensor connection
• * Direct fuel pump control (using 25A-HCO)
• * Direct thermofan control (using 25A-HCO)
• * In cabin breakout connector for spare inputs and outputs
• * Engine bay breakout connector for spare inputs and outputs (eg transmission control)
• * Breakout connector for PDM outputs (eg Headlights, indicators, wipers, etc)
• * Haltech CAN Bus support (DTM-4)
