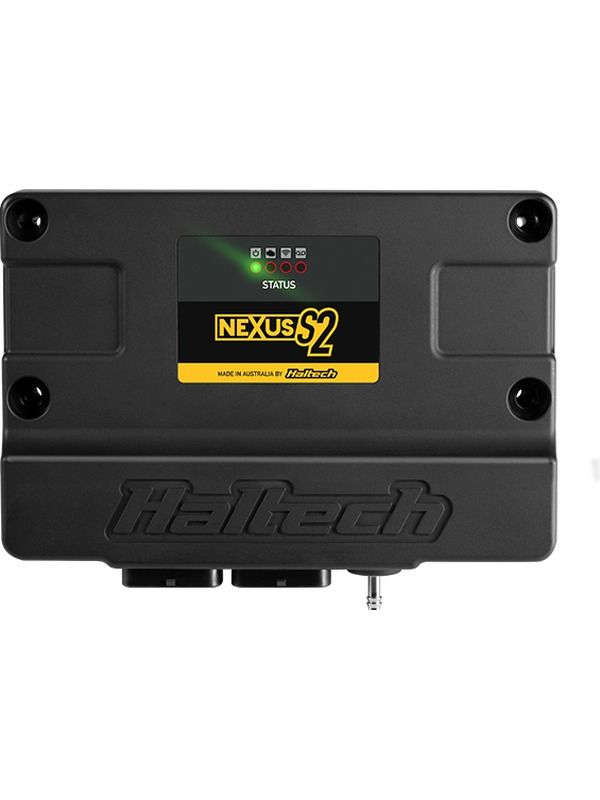

Haltech Nexus S2 ECU Only HT-212000

Haltech Nexus S2 ECU Only

Nexus S2- An ECU, Wifi Module, Wideband Controller and data logger all in one.

4 x Ignition

4 x Injection (peak and hold)

6 x Digital Pulsed Outputs (DPO)

4 x Half Bridge Outputs (HBO)

1 x ECR output

1 x Onboard MAP sensor (4 Bar)

11 x Analog Voltage Inputs (AVI)

1 x Ignition Switch Input

6 x Synchronised Pulsed Inputs (SPI)

2 x Knock Inputs

1 x Onboard Wideband Controller (NTK/LSU 4.9)

128MB onboard logging memory

ECU OVERVIEW Haltech's Nexus S2 is the successor to the acclaimed Elite 1500, offering a serious upgrade in performance and functionality. The S2 combines all the classic functionality of the Elite 1500 with new features and the superior processing power of the successful Nexus platform.

• * 4 x peak/hold injector drivers (can be used as low side drive outputs)
• * 4 x low current ignition outputs (can be used as low side drive outputs)
• * 6 x low side drive outputs, PWM capable (DPOs)
• * 4 x push-pull / half bridge outputs (8A, PWM capable), eg for electronic throttle
• * 1 x ECR output
• * 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
• * Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
• * 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
• * 1 x on-board wideband controller, supporting NTK and LSU4.9
• * 1 x on-board 4 bar MAP sensor
• * 2 x CAN ports with switchable termination
