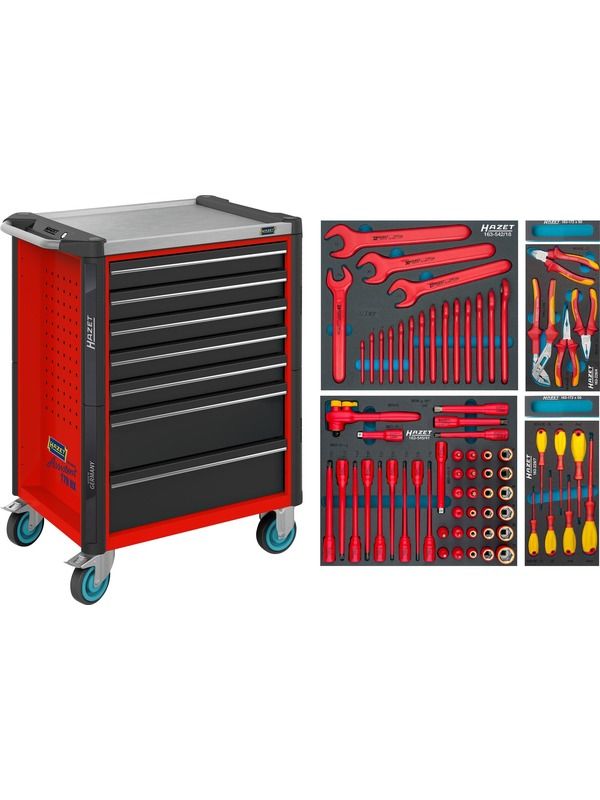

Hazet 70 Pcs 7-Drawer Tool Trolley Assistant 179NX-7/70KV

Hazet 70 Pcs 7-Drawer Tool Trolley Assistant

Application:
Efficient, mobile organisation of tools

• Tool trolley
• 5 flat and 2 high drawers
• Complete with 70-piece tool assortment in Safety-Insert-System soft foam insert

Work areas

• Much larger storage and work areas in plastic (179N) or stainless steel (179NX)
• Fully sealed work surface protects inside of trolley from leaking liquids
• Interfaces integrated in the work area for accessories such as laptop holders and top modules

Body / Pull-handle

• Extremely robust design thanks to dual-wall structure
• Complete welded construction of the entire body for tough daily workshop use
• Optimised, yielding edge protection on all four corners with real impact protection thanks to internal damping concept
• Ergonomically optimised pull handle for better manoeuvrability

Locking concept

• Ergonomically arranged side lock position for better operability protects keys and lock against damage
• Highly secure closing system with central locking technology for optimum protection of your property
• 2-stage locking
  • Central locking, lockable with cylinder lock and 2 folding keys
  • Mutual drawer locking for minimum tilting risk

Drawer concept

• Self-closing and reciprocal locking of the drawers prevents unwanted opening
• 100% sliding-out with ball-bearing telescopic slides
• Drawer design for optimum use of the interior
• Drawer fronts for optimised handling
• Dirt-resistant drawer coating for easy cleaning

High performance chassis

• Large wheels with high loading capacity, precision ball bearing and dual rounded rim in the pivot bearing, easy manoeuvrability, even with high dynamic load
• 2 swivel castors with double stop function: fixed castor prevents inadvertent rolling of the trolley, fixed swivel bearing prevents the castors from swivelling, e.g. on an inclined surface
• Protective ring prevents dirt and threads from getting in
• Elastic tyres enable smooth movement

Tool trolley Assistent 179N-6-9:

• Solvent-resistant plastic work surface
• Metal handle, powder coated in black

Tool trolley Assistent 179NX-6-8:

• Stainless steel work surface
• Extra protection through high-quality plastic end caps
• Brushed stainless steel handle
• Total loading capacity (dynamic): 540 kg
• Loading capacity (static): 1000 kg
• Worktop: Stainless steel
• Loading capacity per drawer: 25 kg
• Colour: RAL 3020
• Dimensions / length: 786 mm x 518 mm x 1020 mm
• Net weight: 90 kg
• Drawers, flat: 5 x 81 x 522 x 398 mm
• Drawers, high: 2 x 166 x 522 x 398 mm
• Drawer size for order system: 3/3+
• Number of fixed castors: 2 ( 125 mm)
• Number of swivel castors: 2 ( 125 mm)
• Number of tools: 70

NOTE: BULKY PRODUCTS INCUR FREIGHT CHARGES

• 7 Drawer Tool Trolley Assistent 179NX

• 4 Pce Pliers Set with protective insulation

• 7 Pce Screwdriver Set with protective insulation (Slotted: 0.4 x 2.5 - 0.8 x 4mm, Phillips: PH1-PH3)

• 18 Pce Open-End Spanner Set with protective insulation: 7-32mm Outside Hexagon Profile

• 41 Pce 3/8" Socket with Protective Insulation: 5-22mm, M8-M12, T10-T50

• Soft Foam Insert with compartments for small pieces: 172 x 50 x 33mm
