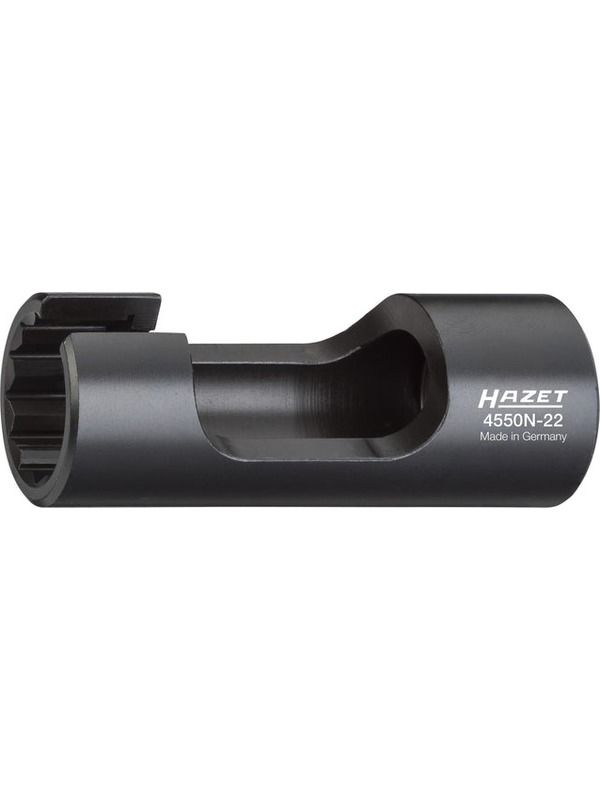

Hazet Hollow Injection Line Spanner
OverviewApplication: Operation of the union nut on the high-pressure line on the MAN injection valve common rail injection system
Proper operation of the injection line screw connection
Open double hexagon socket for injection lines
The tightening torque required by the manufacturer is achieved by using a HAZET torque wrench (observe manufacturer specifications)
Made in Germany
| Output | Outside 12-point profile |
| Wrench size | 22 mm |
| Drive | 1/2 inch (12.5 mm) square, hollow |
| Manual/impact operation | For manual operation |
| Diameter d1 (output side) | 32 mm |
| Diameter d2 (drive side) | 33 mm |
| Surface | burnished |
| Depth | 21 mm |
| Length | 85 mm |
| Length of recess [mm] | 44 mm |
