Holley Engine Management HP EFI ECU & Harness Kit For GM LS2/LS3/LS7 550-607
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.

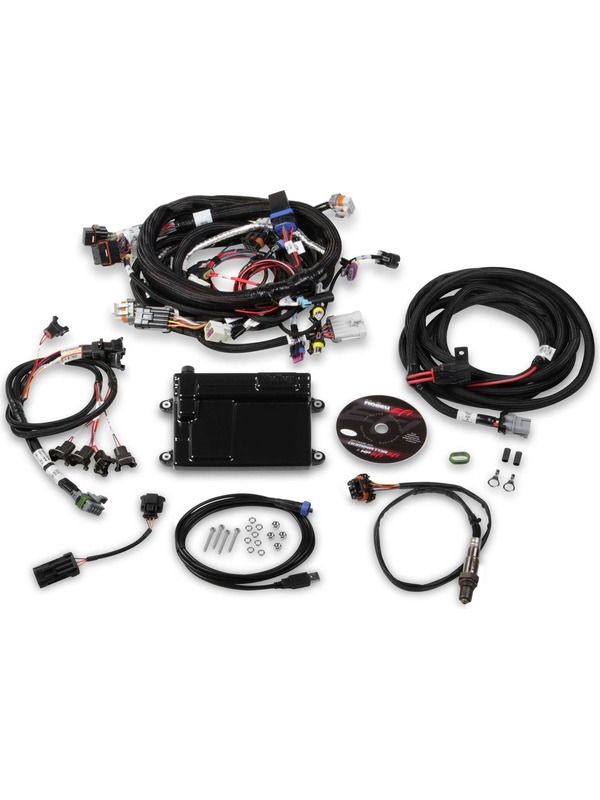

Holley Engine Management HP EFI ECU & Harness Kit For GM LS2/LS3/LS7
Holley HP EFI ECU and harness kits allow you to manage automotive functionslike the fuel and ignition of your engine, along with controlling nitrous, boost, or water/methanol. Select the model with options needed for your vehicle application. (Note: some models are engine-specific.) Features and notes: * Eight sequentially driven 8:2 peak and hold injector drivers capable of driving up to 16 low or high-impedance injectors are standard * 8-channel distributorless ignition (DIS) outputs capable of directly driving "smart" ignition coils or Holley DIS coils * Integrated, single-channel wideband oxygen sensor control. Works with NTK or Bosch sensors. More channels can be added via CAN bus. * Internal data-logging is standard, with a huge 2GB of memory * 4-stage progressive nitrous control * Turbo boost control * Integrated water/methanol injection control * Self-tuning fuel table strategy greatly simplifies tuning process * Individual cylinder fuel and spark control allow you to unlock your engine's potential * Compatible with 4, 6, and 8-cylinder engines * Unique lbs./hr.-based fueling strategy greatly simplifies tuning * Advanced idle, closed loop, and enrichment strategies allow for very stable operation * Fully potted and can be mounted in the engine compartment or interior * Sealed automotive and marine-grade connectors * Allows for use of common OEM sensors, as well as customer sensor calibration input * Ignition plug-and-play with GM 24x and 58x LSx engines, GM HEI, Ford TFI, magnetic, and hall effect trigger, and other ignition systems * 1-5 bar MAP sensor capability * 2-channel knock control sensor inputs for both one and 2-wire knock sensors * Dedicated fuel and oil pressure inputs * Control both stepper and PWM idle air control (IAC) motors * Speed density, Alpha-N, or combination fueling strategies * Four programmable high or low pulse width modulated (PWM) outputs and four fully configurable inputs can be configured for use * Lean or rich safety cutoff
