Works on a 7.00 in. to 12.000 in. deep tank. Must be used with a return-style system. Listed 900LPH is for the dual 450LPH pumps. Supports up to 1,750 EFI or 2,200 carbureted hp.

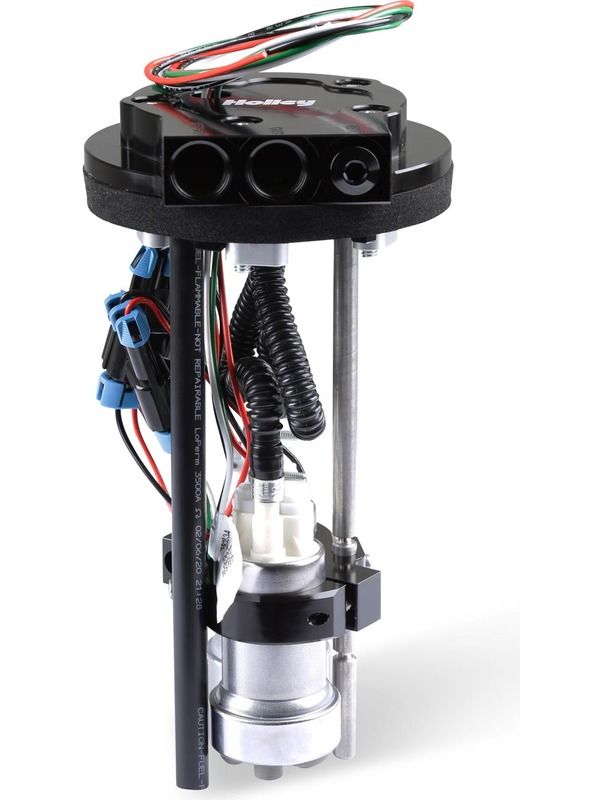

Holley in-tank retrofit fuel modules are the easiest way to convert your vehicle's factory tank or fuel cell to an in-tank, EFI fuel systemand gain all the benefits of a Holley Hydramat reservoir, as well. This conversion requires only basic tools, no welding or fabrication. The low-profile, aluminum module design includes a billet pump hanger bracket to control vibration; Holley's innovative clamping system and integrated fuel pump allow you to locate the module anywhere in the tank beside your existing sending unit. Once installed, simply hook up your fuel lines and your power source/ground, and you're ready to roll. Holley in-tank retrofit modules are available with fuel pumps for both return and returnless-style systemsand models to support various liters per hour (LPH).
Additional details:
* Installs in any fuel tank to fit a wide range of applications
* The low-profile design is only 1.275 in. thick above the tank mounting surface for added clearance
* Clamping system allows you to rotate the unit 360 degrees for easier clocking of plumbing and wiring
* Hydramat fuel reservoir's 3 x 15 in. mounting flange has six clocking pin locations for 360 degree adjustment
* Black anodized aluminum construction to resist corrosion
* 1/4 in. NPT ports available for numerous plumbing options
* Ideal for Terminator EFI, Sniper EFI, MSD Atomic EFI, or any TBI or EFI conversion
* Optional rollover valve available
