Holley Oil Pan Baffle GM LS Retro-fit Natural Chevy 4.8L 5.3L 6.0L Kit
Holley Oil Pan Engine Swap Natural 6.1 Quarts Retrofit Chevy 6.2L LT1
Holley Oil Pan Black 4.250" Stroke 5.5 Quarts Chevy 4.8 5.3 6.0L 302-1BK
MPN: 302-1BK
|
RPI: 2125190
or 4 interest-free payments of
$250.87
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Type in your postcode or suburb to get an estimate on postage cost.
Estimate
Save more when you buy more with combined postage
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days *
* You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
Brand
GTIN
090127715048
MPN
302-1BK
Handling Time
7-10 Business Days
Return Policy
No Return (Unless Manufacturer Defect)
Warranty
Manufacturer Warranty
Sump Style
Wet
Oil Pan Style
Street/Strip
Sump Location
Rear
Oil Pan Capacity
5.50 quarts
Stroker Clearanced
Yes
Maximum Stroke with OE Rod
4.250 in.
Dipstick Provision
No
Dipstick Included
No
Oil Pan Depth (in.)
5.890 in.
Oil Pan Material
Aluminum
Oil Pan Finish
Black ceramic coated
Baffled
Yes
Kicked Out
No
Windage Tray Included
No
Pickup Included
Yes
Oil Pump Included
No
Oil Pump Driveshaft Included
No
Crank Scraper Included
No
Gaskets Included
No
Hardware Included
No
Quantity
Sold individually.
Notes
Engine will take a total of 6 quarts of oil including the stock filter. Engine location may need to be adjusted (up/down or fore/aft) for proper clearance.

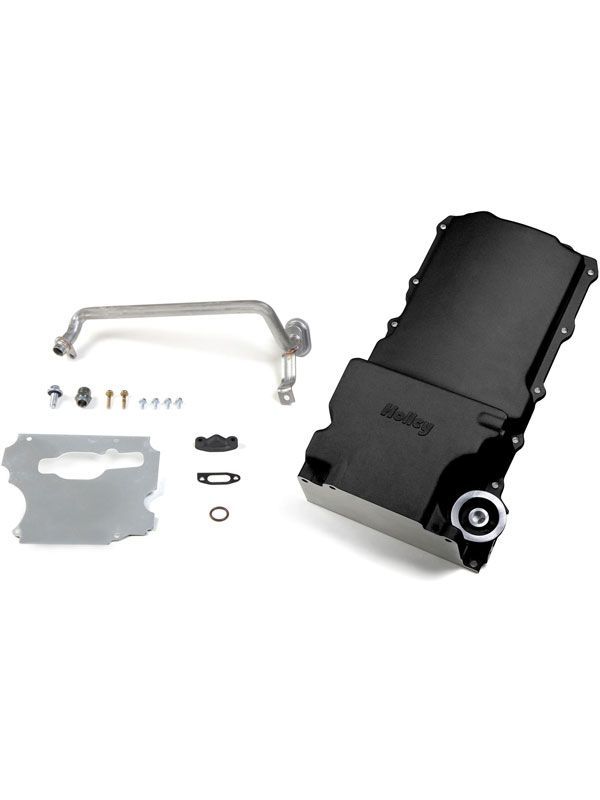

Holley Oil Pan Black 4.250" Stroke 5.5 Quarts Chevy 4.8 5.3 6.0L Holley GM LS retrofit engine oil pans are designed to install an LS engine in a variety of GM musclecar and truck chassis. They provide OEM fitment, OEM oil filter mounting, OEM oil cooler port provision, OEM engine NVH suppression, OEM flange gasket and sealing, proper structural rigidity, and OEM bellhousing attachments. The oil pans are manufactured from traditional high-quality cast aluminum and include a sump baffle, oil pump pickup tube, sump plug, oil filter stud, and oil passage cover.
Item Specific Information
Brand
GTIN
090127715048
MPN
302-1BK
Handling Time
7-10 Business Days
Return Policy
No Return (Unless Manufacturer Defect)
Warranty
Manufacturer Warranty
Sump Style
Wet
Oil Pan Style
Street/Strip
Sump Location
Rear
Oil Pan Capacity
5.50 quarts
Stroker Clearanced
Yes
Maximum Stroke with OE Rod
4.250 in.
Dipstick Provision
No
Dipstick Included
No
Oil Pan Depth (in.)
5.890 in.
Oil Pan Material
Aluminum
Oil Pan Finish
Black ceramic coated
Baffled
Yes
Kicked Out
No
Windage Tray Included
No
Pickup Included
Yes
Oil Pump Included
No
Oil Pump Driveshaft Included
No
Crank Scraper Included
No
Gaskets Included
No
Hardware Included
No
Quantity
Sold individually.
Notes
Engine will take a total of 6 quarts of oil including the stock filter. Engine location may need to be adjusted (up/down or fore/aft) for proper clearance.
