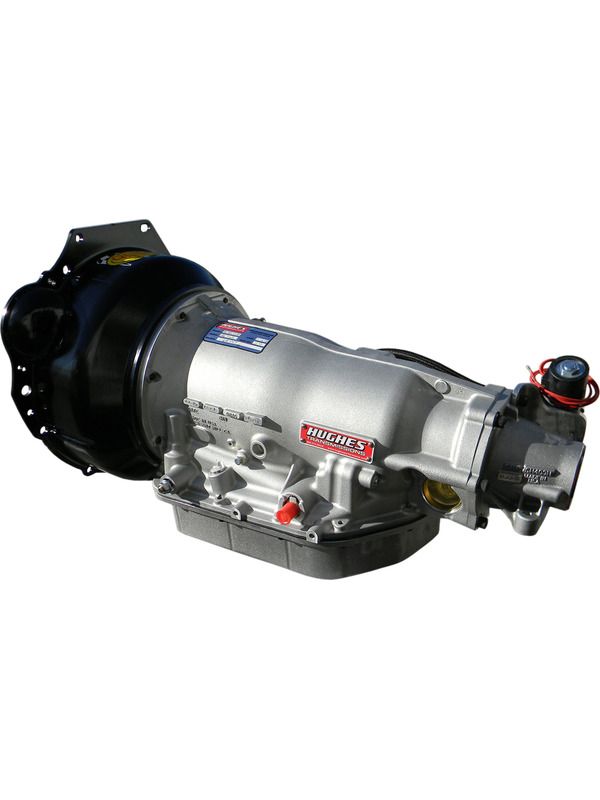

Hughes Performance Pro Series Transmission TH400 SFI Case 34-3XHD248SAFA
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.
Pro Series Transmision
TH400 SFI Case Suit Ford 6cyl Barra, Transbrake Reverse Shift, Up To 2000HP
Features
Pro Series TH400 transmission assembly
Rated for use with up to 2,000 flywheel horsepower
QuickTime Performance SFI-certified Ford Barra bellhousing
Reid Racing or ATI SFI-certified transmission case
Reid Racing or ATI heavy duty 4-inch extension housing with roller bearing
Extreme Duty Pro Tree billet aluminium transbrake valve body, 3-speed, reverse shift pattern (P-R-N-1-2-3)
300M billet steel solid input shaft
H-11 billet steel intermediate shaft
4140 forged steel nitride-treated forward clutch hub
Hard anodized billet aluminium direct drum
Pro Mod 36 element intermediate sprag and heat treated races
Billet aluminium adjustable pressure regulator
Heat treated steel pump stator tube
Raybestos Gen 2 blue friction plates
Raybestos Kolene steel plates Proprietary Pro Mod rear band Thrust washers replaced with Torrington bearings throughout transmission where applicable Deep cast aluminium transmission pan with magnetic drain plug
2.48:1 1st gear, 1.48:1 second gear, 1.00:1 third gear
