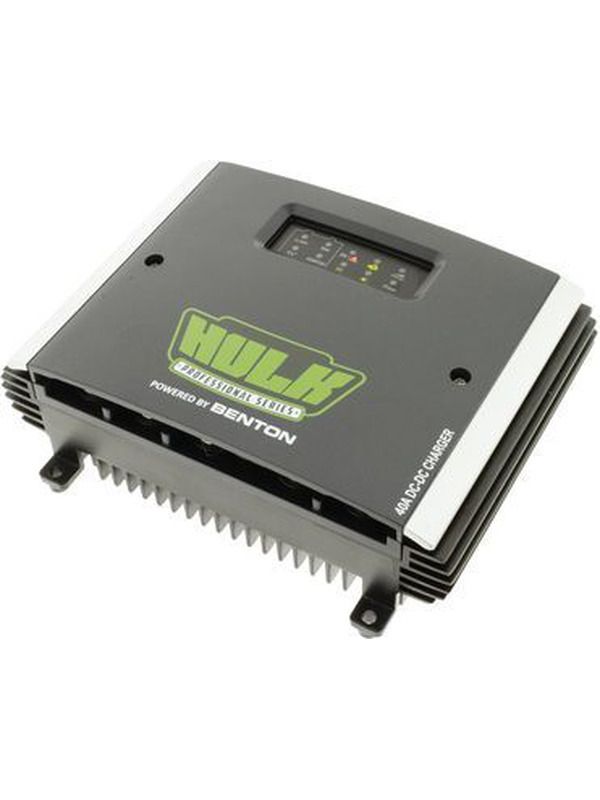

Hulk 4x4 DC-DC Battery Charger 12/24V 40A Multi Stage 12/24V Input 12V HU6540
MPN: HU6540
|
RPI: 2506579
$492.80
Free standard shipping for orders over $88
Australia Wide
Handling Time
1-3 Business Days Handling Time
(Prior to Dispatch)
(Prior to Dispatch)
Return Policy
30 Days Return
| Brand |
 |
|---|---|
| GTIN | 9316042963472 |
| MPN | HU6540 |
| Handling Time | 1-3 Business Days |
| Return Policy | 30 Days Return |
| Warranty | Manufacturer Warranty |
| Alternator Input Range | 11- 32V |
| Solar Input Range | 15-41V |
| DC Input Range | 11-32V |
| Solar MPPT 12V Panel | 40A max. |
| Solar MPPT 18V Panel | 40A max. |
| Solar MPPT 24V Panel | 40A max. |
| 12V Alternator Input Low Voltage Turn OFF | 12.6V |
| 12V Alternator Input Low Voltage Turn ON | 3.2V |
| 12V Alternator Input Over Voltage Turn ON | 14.8V |
| 12V Alternator Input Over Voltage Turn OFF | 16V |
| 24V Alternator Input Low Voltage Turn OFF | 25.2V |
| 24V Alternator Input Low Voltage Turn ON | 26.4V |
| 24V Alternator Input Over Voltage Turn ON | 29.6V |
| 24V Alternator Input Over Voltage Turn OFF | 32V |
| Ignition Override Low Voltage Turn OFF | 11.5V |
| Ignition Override Low Voltage Turn ON | 12V |
| Ignition Override Over Voltage Turn ON | 31V |
| Ignition Override Over Voltage Turn OFF | 32V |
| DC Input Low Voltage Turn OFF | 11V |
| DC Input Low Voltage Turn ON | 12V |
| DC Input Over Voltage Turn ON | 31V |
| DC Input Over Voltage Turn OFF | 32V |
| Output Voltage | 3-15V |
| Output Current | 40A max. |
| Output Power | 600W max. |
| Operating Temperature | -20 to 85?C |
| Protection Class | IP67 |
| Standard | EN55014, AS/NZS CISPR14 |
| Weight (g) | 1140 |
| Battery Type Standard Wet | 14.6V |
| Battery Type Calcium | 14.8V |
| Lithium-Ion | 14.4V |
Hulk 4x4 DC-DC Battery Charger 12/24V 40A Multi Stage 12/24V Input 12V
Your vehicle's alternator is not designed to fully charge auxiliary batteries. An insufficient charge may cause sulphation resulting in shorter battery life and impaired performance.
The answer to this is the HULK Professional Series In Vehicle DC-DC Battery Chargers.
Available in 20A, 25A or 40A and engineered to operate in the toughest conditions either under bonnet or in vehicle, charging your auxiliary batteries to their optimum level whilst driving or with solar when parked. Fully Automatic and using a unique 7 Stage charging algorithm the HULK Professional Series DC-DC battery chargers ensure your battery is charged to 100%, irrespective of size or type.
Features
- Automatic Input Selection
- Automatically selects the input, Alternator, Solar, DC, based on the Active input. No manual switching required.
- Multi Stage 24V output
- Ignition Connection
- Allows Low Input Operation suitable for variable voltage alternators.
- Multi-Chemistry Charging
- Capable of charging a variety of rechargeable batteries, like Lead Acid Wet / Flooded types, GEL, AGM, MF, Calcium and Lithium batteries.
- Solar MPPT Regulator
- Maximises the power available from solar panels even in low light.
- 7 Stage Intelligent Switch Mode Charging
- Unique charging algorithm enhances the life of batteries by ensuring a full charge and conditioning. It also recovers batteries many times faster than an alternator.
- Wide Operating Range
- Vehicle voltage input from 11-32 Volt, Solar input is from 9-42 Volt
- Temperature Compensation
Using the temperature sensor, the charger continually adjusts its charge rate to suit the battery temperature protecting the battery from overcharging and overheating. - Super Quiet Operation
- No internal fan ensures a super quiet operation.
- Parallel Connection Units
- Can be connected in parallel to provide more output when using high output alternators.
- Optional Terminal Block
- Additional accessory that provides ease of wiring when multiple earths are required.
- Compatible Battery Monitor
- An additional accessory the LCD display monitors the Main and Auxiliary batteries status.
