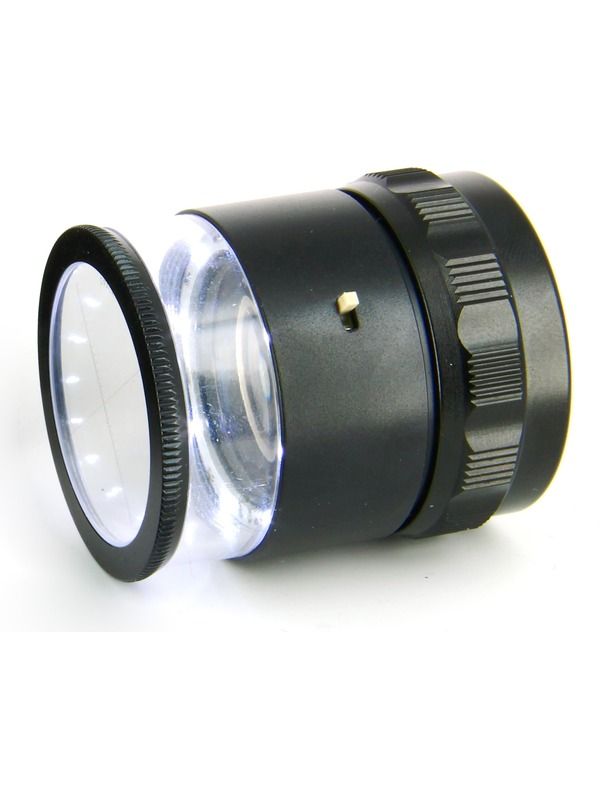

Ideal-Tek 8 LED Loupe 10x with Scale LE-003

Ideal-Tek 8 LED Loupe 10x with Scale

• Magnification: 10x

• Lens : 30 mm

• Number of Leds: 8

• Smallest graduation: 0.1 mm

• Total length measurable: 30 mm

• Field of vision: 340 mm

• Lens: 3 double lenses

• Focus ring: yes

• Weight: 115 g

• Dimension: 45x45x62 mm

• Scale tolerance for the 30mm: +- 0.01mm

The lens and the scale are made of glass.

• Do not look into the sun through the lens directly, to prevent the damage of eyes.

• Do not leave the magnifier lens exposed to sunlight directly, to prevent the ignition.

• Do not leave the magnifier exposed to moisture and heat.

• Do not mix the battery type when using or replacing it.

• Do not remove or tamper LED parts

• Clean the lens using a soft cloth. Do not use solvents or abrasives, etc.

• Protect the magnifier from impacts.

• To prevent the disrepair, do not apply excessive pressure to the magnifier.

• ESD safe: no

• Magnification: 10x

• Special features: 8 white LEDs - mm scale

• Product OAL (mm - in): 45.00 - 1.772

• Product width (mm - in): 45.00 - 1.772

• Product height (mm - in): 62.00 - 2.441

• Net weight (g-lb): 115.0 - 0.254

• RoHS compliant: yes

• Battery type: 4 x ALKALINE CELL AG9
