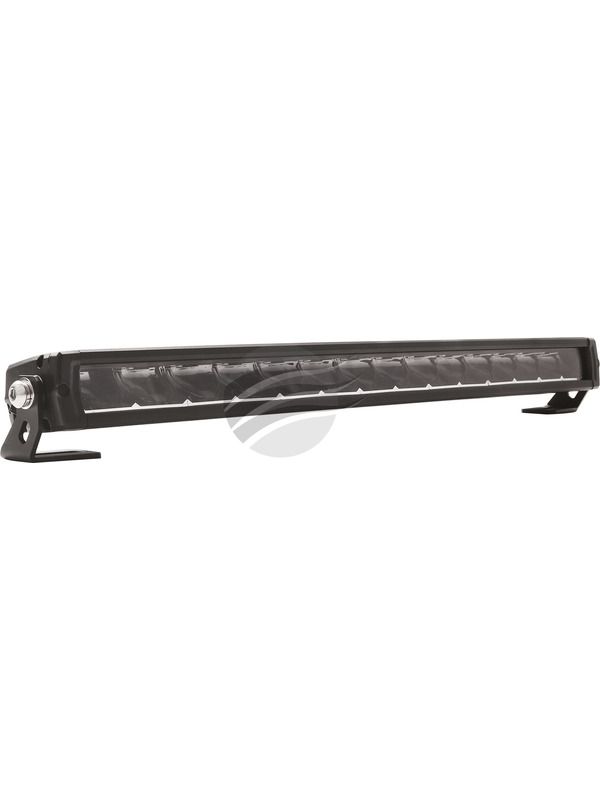

Ignite 14 LED Driving Lamp Curved Lightbar Driving Beam 9-36V 98W ILB604C
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.
Ignite Ultra Slimline Single Row Curved LED Driving Lamp Lightbar 9 - 36 Volt 98 Watt
Driving Beam Pattern
14 x 7 Watt High Intensity LP LED's
8,800 Raw and 7,500 Effective Lumens and 6,000K
1 Lux @ 422m and 178,000cd Peak Beam Intensity
Current Draw: 6.8amp @ 12 Volt and 3.2amp @ 24 Volt
Polycarbonate Reflector Focusing Optic Drive Technology with Lexan Polycarbonate Lens
Light Transmittance >95%
Integrated Electronic Thermal Management (ETM)
Black Anodized Polyester Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink
and Pressure Equalising Vent
Dual Mounting Systems; 6063 Aluminium Bottom Mount Brackets and SUS201 Stainless Steel Side Mount Brackets
Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
500mm Lead with 2 Pin Deutsch Plug
Over and Under Voltage Protection
Reverse Polarity Protection
UV, Water and Shock resistant
50,000 Hours LED Lifespan
ECE R112 (Ref 40), R10 and CE Approved
IP68 and IP69K Rating
