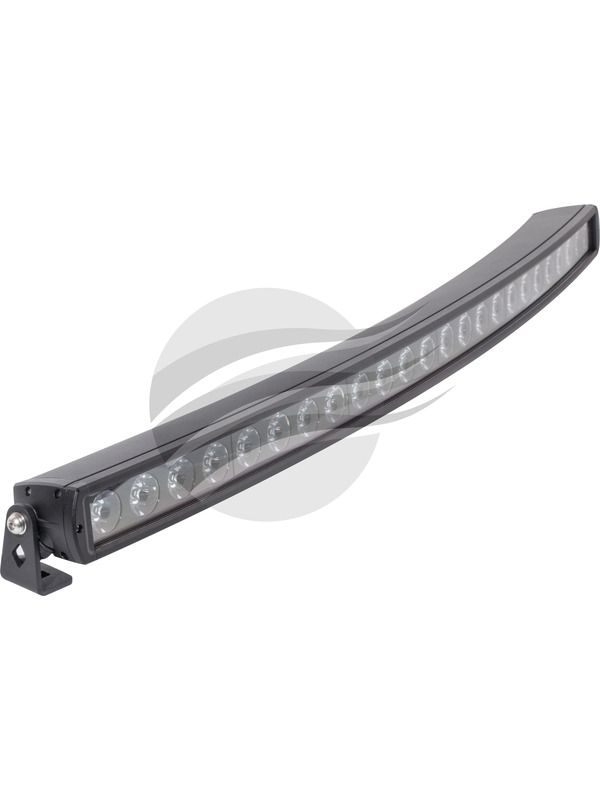

Ignite 24 LED Driving Lamp Curved Lightbar Combo Beam 30/10Deg 9-36V ILBC990CB
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.
Ignite SX Series Single Row Curved LED Driving Lamp Lightbar 9 - 36 Volt 240 Watt
24 x 10 Watt High Intensity Osram LED's
Combined Spot (Pencil) and Flood (Spread) Beam Patterns 15 Degrees, 35 Degrees
24,840 Raw Lumens, 1 Lux @ 433m and 6,000K
Current Draw: 16.2amp @ 12 Volt and 8.1amp @ 24 Volt
Proprietary Polycarbonate TIR Optical System Reflector Technology with Lexan Polycarbonate Lens
Light Transmittance >95%
Integrated Electronic Thermal Management (ETM)
Black Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent
Dual Mounting Systems; Bottom Mount Brackets and Side Mount Brackets
Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
500mm Lead with 2 Pin Deutsch Plug
Over and Under Voltage Protection
Reverse Polarity Protection
UV, Water and Shock resistant
50,000 Hours LED Lifespan
ECE R112, R10 and CE Approved
IP68 and IP69K Rating
Environment Temperature: -40°C ~ +60°C
