Ignite 36 LED Driving Lamp Lightbar Driving Beam 9-36V 180W 16300Lm ILB608
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.

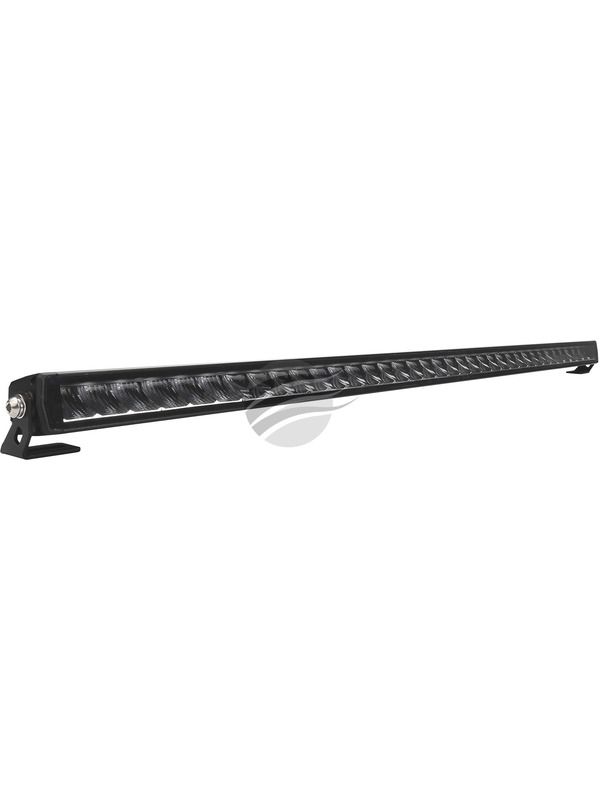

Ignite Ultra Slimline Single Row LED Driving Lamp Lightbar 9 - 36 Volt 180 Watt
Driving Beam Pattern
36 x 5 Watt High Intensity LG LED's
16,300 Raw and 13,900 Effective Lumens and 6,500K
419,900cd Peak Beam Intensity
Current Draw: 10.4amp @ 12 Volt and 5amp @ 24 Volt
Polycarbonate Reflector Focusing Optic Drive Technology with Lexan Polycarbonate Lens
Light Transmittance >95%
Integrated Electronic Thermal Management (ETM)
Black Anodized Polyester Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink
and Pressure Equalising Vent
Dual Mounting Systems; 6063 Aluminium Bottom Mount Brackets and SUS201 Stainless Steel Side Mount Brackets
Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
500mm Lead with 2 Pin Deutsch Plug
Over and Under Voltage Protection
Reverse Polarity Protection
UV, Water and Shock resistant
Anti Rust, corrosion and freezing resistance
50,000 Hours LED Lifespan
ECE R10 and CE Approved
IP68 and IP69K Rating
Environment Temperature: -40°C ~ +60°C
