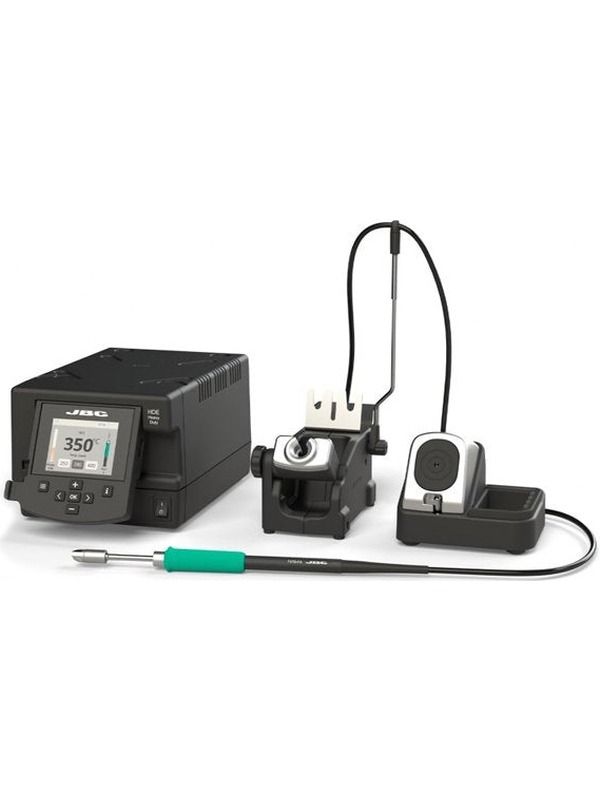

JBC HDE Heavy Duty Solder Station 230V Cartridges Not Included HDE-2E

JBC HDE Heavy Duty Solder Station 230V Cartridges Not Included

HD Station is the most powerful soldering unit in the JBC range and it is designed for soldering applications that require large amounts of heat.

It provides the best soldering quality thanks to JBC Exclusive Heating System and, additionally, the intelligent Sleep & Hibernation Modes help to extend life of tips.

This station comes with T470F Thermal Insulator Grip HD Handle, the most comfortable HD Handle thanks to the foam and the wider grip. It is only compatible with C470 Cartridge Range.

This station includes a stand with a complete cleaning system - a Tip Cleaner with brass wool, as well as, splashguard and anti-splash membrane to keep the work area clean and free of solder particles. Quick Cartridge Changer enables a safe, easy and quick cartridge exchange which, combined with Cartridge Holder, allows you to store up to four cartridges. Also, the station includes a SCH Cartridge Holder to store up to 16 cartridges and tips nearby.

As all JBC Stations, Heavy Duty Station has a fast and easy configuration menu with more than 10 customizable parameters according to your needs, full control of soldering processes and remote work management thanks to JBC Software. It also allows direct connection with JBC Fume Extractors.

Additionally, you can connect KHT470 Heavy Duty Tweezer Kit which provides twice the power of T470 Handles. In this kit 2 HDU Control Units are required.

NOTE: CARTRIDGES NOT INCLUDED

• 1 x HDU Heavy Duty Control Unit

• 1 x T470F Thermal Insulator Grip HD Handle (cartridge not included)

• 1 x HDS Stand for T470 Heavy Duty Handles

• 1 x SCH Cartridge Holder

C470 Series Cartridges available to purchase HERE

• Selectable Temperature: 90 to 500 C / 190 to 932 F

• Idle temp. stability (still air): +-1.5C (+-3F) / Meets and exceed IPC J-STD-001F

• Temp accuracy: +-3% ( using reference cartridge)

• Temp adjustment: +-50C (+-90F) Through station menu setting

• USB-B (rear): Software PC / Traceability

• USB-A (front): Firmware update Soldering Graphics management

• RJ12 Connector

• Tip to ground vol./ resist.: Meets and exceed ANSI/ESD S20.20-2014 IPC J-STD-001F

• Peak power: 250 W - 42 V

• Operating temp. range: 10 to 50 C / 50 to 120 F

• Premium Stations: 232 x 148 x 120 mm / 5.37 kg.

• Package: 450 x 345 x 243 mm / 6.19 kg.

JBC HDE Heavy Duty Solder Station Compatible Items

MNE-A Nitrogen Flow Regulator for DDE, DME, HDE

HT470-A Thermal Tweezers

KHT470A HD Tweezers Set

T470-FA - Thermal Insulator HD Handle

T470-NA Nitrogen HD Handle

JBC HDE Heavy Duty Compatible Cartridges

C470 Cartridge Range
