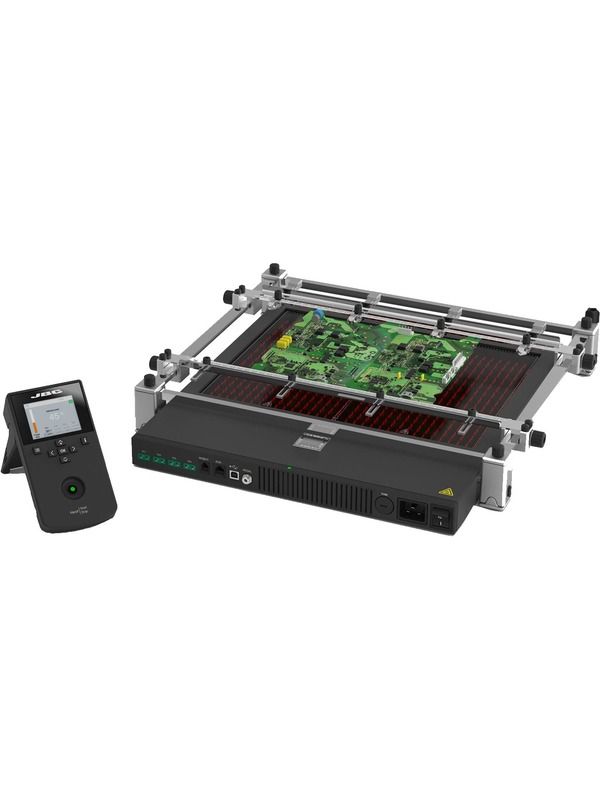

JBC Large Preheater Set 230V
OverviewIndispensable for avoiding thermal shock on multilayer PCBs while reworking.
Its composition, Preheater and PCB Support, is a complete solution to rework medium / large PCBAs, such as the ones commonly used in laptops or PCB panels. It features a heating area of 360 x 277 mm / 14.2 x 10.9 in. and four TC connections.
Matchless reliability in temperature accuracy and control of the PCBA so that no component is damaged.
It features three work modes:
Power Mode allows working at a fixed power level with the option of using protection thermocouple.
Temperature Mode keeps the PCBA at a selected temperature, using the regulation thermocouple and, optionally, protection thermocouples.
Profile Mode allows control of the heating rate of the PCBA by the use of a control and protection thermocouple, without exceeding the recommended limit levels in each application. It features 22 customizable profiles.
Up to four thermocouples can be connected in any of the three work modes.
PHBS Support is perfectly adapted to any type of PCBs by means of its many adjustable components and its 3 adjustable clearance positions 28, 38 or 48 mm / 1.1, 1.5 or 1.9 in.
Contents1 x Heater Unit
1 x Console
1 x PHBS Support for PCBs up to 36 x 28cm / 14 x 11"
2 x PH218 Thermocouple Type K
1 x PH217 x Kapton Tape
Peak Power: 1800W (120V & 230V) / 1400W (100V)
Selectable temperature: 50 to 250 C / 120 to 482 F
Heating area: 180 x 277 mm / 7.1 x 10.9 in - 1 zone; 360 x 277 mm / 14.2 x 10.9 in -2 zones
Type K TC connector: 4 for Control & Protection
Profiles: 22 (up to 16 steps for each), 3 preset profiles
Maximum work time: 50 min or indefinite
ESD safe: Meet ANSI/ESD S20.20-2021
USB-A: Firmware update; Graphics and profiles
USB-B: PC communications
Robot connector: Remote control
Aux. connector: Console connection
Pedal Connector: Connect a pedal (ref. P-005) to control the heater
Dimensions: 426 x 444 x 41mm / 9.70kg (preheater unit)
