JBC Multiaxis Rotative PCB Support PSS-A
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.

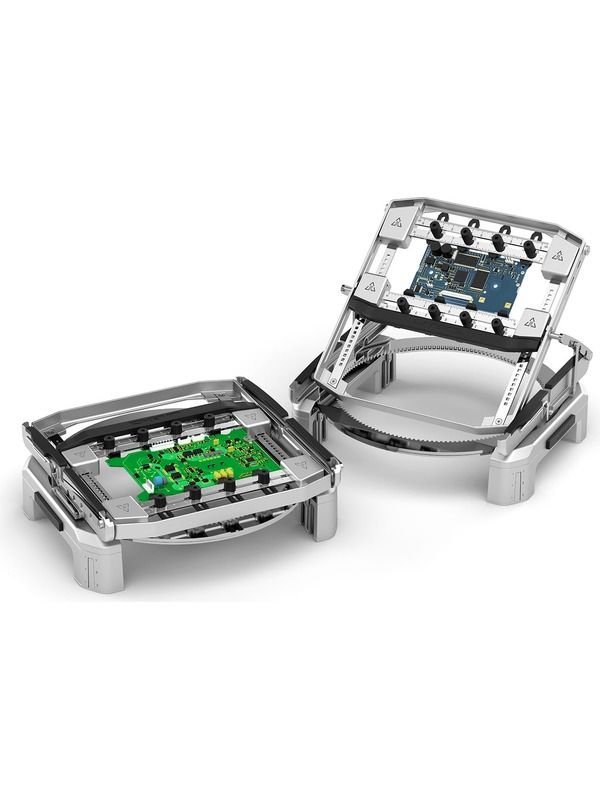

JBC Multiaxis Rotative PCB Support
OverviewSave time and optimize workflow.
PSS enables quick, precise PCB changes, ensuring proper positioning for repetitive soldering tasks.
This support adapts perfectly to any type of PCB up to 130 x 130 mm / 5 x 5 in by means of its many adjustable elements.
FeaturesHorizontal-axis swivel: Turn the PCB holder 180 upside down and choose among 4 different angular positions 25, 35, 45 and 55.
Vertical-axis swivel: Allows positioning the PCB at any angle. It can be rotated in horizontal and inclined position.
It provides up to 3 heights.
When combined with PHSE Preheater its built-in slots ensure precise board-preheater alignment to always heat the same area. Set different heights to find your ideal position
or to adjust the distance between the PCB and the heating area of PHSE Preheater. The support allows you to work continuously on the PCB without waiting for it to cool down.
Low position: 267 x 259 x 75 mm / 10.5 x 10.2 x 3 in
High position: 267 x 259 x 96 mm / 10.5 x 10.2 x 3.8 in
Max. Diameter (Rotated Position): 300 mm / 11.81 in
Max. Height (Flip): 300 mm / 11.81 in
Max. PCB Dimensions: 13 x 13 cm / 5 x 5 in / Thickness 6 mm / 0.236 in
WEIGHT AND DIMENSIONS
2.465 kg (5.43 lb)
2.950 kg (6.50 lb)
368 x 368 x 125 mm
