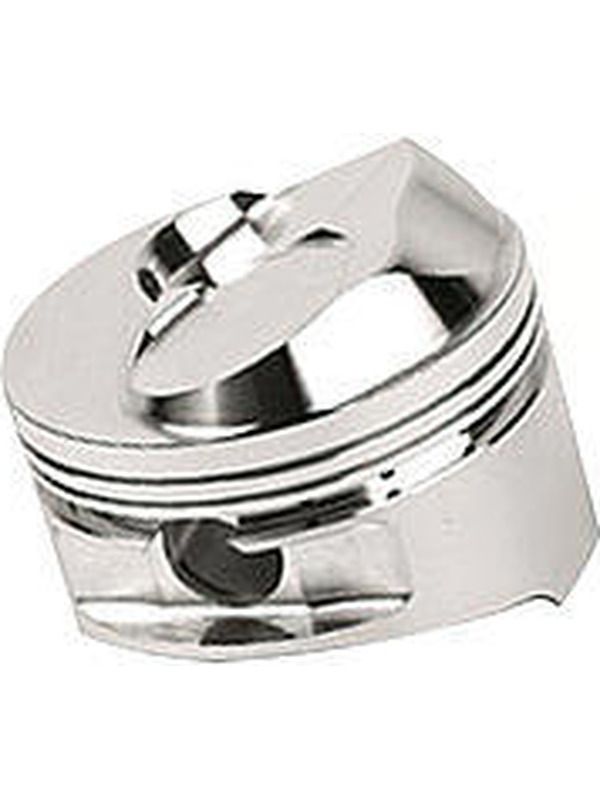

JE Pistons Piston Big Block Open Chamber Dome Forged 4.530 in Bore 1/1
JE Pistons Piston Big Block Open Chamber Dome Forged 4.560 in Bore 1/1
JE Pistons Piston Big Block Open Chamber Dome Forged 4.560 in Bore 1/1 258240
MPN: 258240
|
RPI: 2275288
or 4 interest-free payments of
$25,000.00
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time
(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Type in your postcode or suburb to get an estimate on postage cost.
Save more when you buy more with combined postage
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
| Brand |
|
| GTIN |
193564003270 |
| MPN |
258240 |
| Handling Time |
7-10 Business Days |
| Return Policy |
No Return (Unless Manufacturer Defect) |
| Warranty |
Manufacturer Warranty |
| Bore Diameter |
4.560 in |
| Compression Height |
1.270 |
| Cylinder Head |
OPEN CHAMBER |
| Forging Type |
Round |
| Industry |
Automotive |
| Oil Ring Thickness |
0.218 |
| Piston Avg Wt |
664 gr |
| Piston Head Type |
Dome |
| Piston Material |
2618 |
| Piston Pin Length |
2.930 in |
| Piston Pin Material |
5115 |
| Piston Pin Outside Diameter |
0.990 in |
| Piston Pin Wall Thickness |
0.180 in |
| Piston Volume |
45 ccm |
| Product Market |
Domestic |
| Ringset Included |
No |
| Second Compression Ring Thickness |
0.064 |
| Top Compression Ring Thickness |
0.064 |
| Add-On |
990-042-CS |
JE Pistons Piston Big Block Open Chamber Dome Forged 4.560 in Bore 1/1
Piston - Big Block Open Chamber Dome - Forged - 4.560 in Bore - 1/16 x 1/16 x 3/16 in Ring Grooves - Plus 45.0 cc - Big Block Chevy - Set of 8
