JE Pistons Piston F.S.R. Tour Series GP Forged 4.040 in Bore 0.043 in
JE Pistons Piston Big Block Open Chamber Dome Forged 4.530 in Bore 1/1
JE Pistons Piston F.S.R. Tour Series GP Forged 4.045 in Bore 0.043 in 258031
MPN: 258031
|
RPI: 2275286
or 4 interest-free payments of
$510.57
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time
(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Type in your postcode or suburb to get an estimate on postage cost.
Save more when you buy more with combined postage
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
| Brand |
|
| GTIN |
193564003386 |
| MPN |
258031 |
| Handling Time |
7-10 Business Days |
| Return Policy |
No Return (Unless Manufacturer Defect) |
| Warranty |
Manufacturer Warranty |
| Bore Diameter |
4.045 in |
| Compression Height |
1.250 |
| Cylinder Head |
CHEVROLET 23 DEG 20/30 |
| Forging Type |
FSR |
| Industry |
Automotive |
| Oil Ring Thickness |
0.119 |
| Piston Avg Wt |
367 gr |
| Piston Head Type |
Flat |
| Piston Material |
2618 |
| Piston Pin Length |
2.350 in |
| Piston Pin Material |
5115 |
| Piston Pin Outside Diameter |
0.927 in |
| Piston Pin Wall Thickness |
0.150 in |
| Piston Volume |
-5 ccm |
| Product Market |
Domestic |
| Ringset Included |
No |
| Second Compression Ring Thickness |
0.044 |
| Top Compression Ring Thickness |
0.0436 |
| Add-On |
927-073-MW |
JE Pistons Piston F.S.R. Tour Series GP Forged 4.045 in Bore 0.043 in

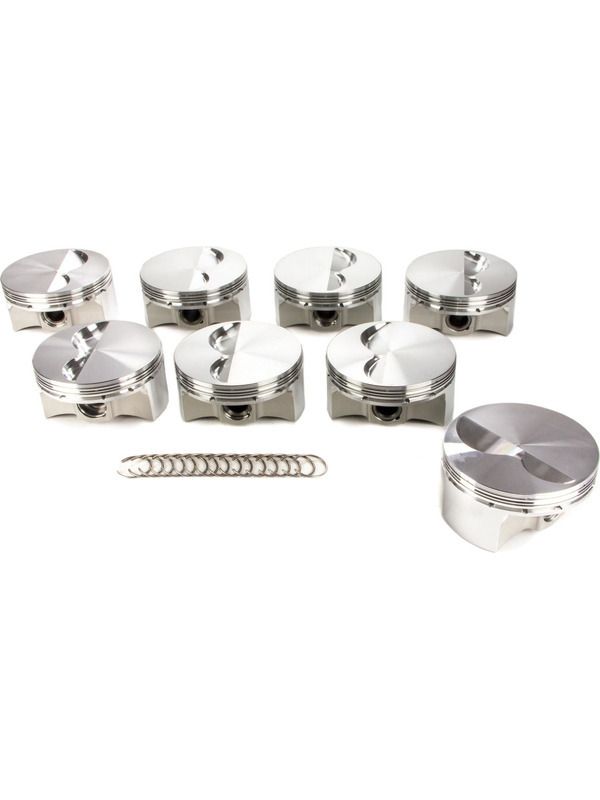

Piston - F.S.R. Tour Series GP - Forged - 4.045 in Bore - 0.043 in x 0.043 in x 3.0 mm Ring Grooves - Minus 5.0 cc - Small Block Chevy - Set of 8
