JE Pistons Piston Small Block Dome Forged 4.185 in Bore 1/16 x 1/16 x 207514
MPN: 207514
|
RPI: 2275270
or 4 interest-free payments of
$487.21
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time
(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Type in your postcode or suburb to get an estimate on postage cost.
Save more when you buy more with combined postage
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
| Brand |
|
| GTIN |
193564003454 |
| MPN |
207514 |
| Handling Time |
7-10 Business Days |
| Return Policy |
No Return (Unless Manufacturer Defect) |
| Warranty |
Manufacturer Warranty |
| Bore Diameter |
4.185 in |
| Compression Height |
1.062 |
| Cylinder Head |
CHEVROLET 23 DEG 20/30 |
| Forging Type |
Round |
| Industry |
Automotive |
| Oil Ring Thickness |
0.218 |
| Piston Avg Wt |
466 gr |
| Piston Head Type |
Dome |
| Piston Material |
2618 |
| Piston Pin Length |
2.750 in |
| Piston Pin Material |
5115 |
| Piston Pin Outside Diameter |
0.927 in |
| Piston Pin Wall Thickness |
0.150 in |
| Piston Volume |
10.8 ccm |
| Product Market |
Domestic |
| Ringset Included |
No |
| Second Compression Ring Thickness |
0.064 |
| Top Compression Ring Thickness |
0.064 |
| Add-On |
927-042-CS |
JE Pistons Piston Small Block Dome Forged 4.185 in Bore 1/16 x 1/16 x

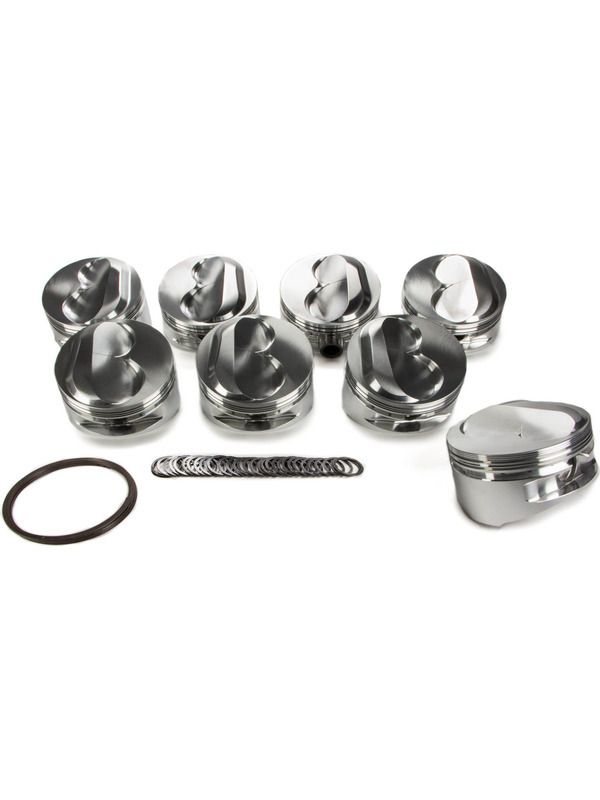

Piston - Small Block Dome - Forged - 4.185 in Bore - 1/16 x 1/16 x 3/16 in Ring Grooves - Plus 10.9 cc - Small Block Chevy - Set of 8
