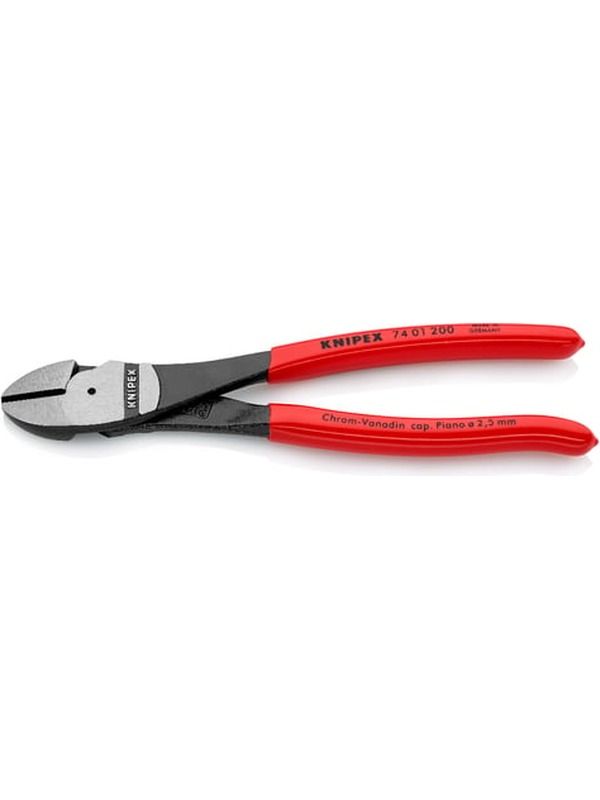

Knipex High Leverage Diagonal Cutter 200mm 74 01 200B

Knipex High Leverage Diagonal Cutter 200mm

Thanks to their high cutting capacity and indestructible strength, the Knipex 74 01 200 high leverage diagonal cutters are highly valued especially by craftsmen, and therefore in great demand.

These high leverage diagonal cutters are also often used in the motor trade, on the building site and in industry.

They are also ideal as constant companion in mobile applications, because despite their compact size, they are still able to cut hard materials effortlessly.

At just 200 mm long, the Knipex 74 01 200 fits in most work bags and in almost any tool case.

Compared to conventional diagonal cutters of the same size, the Knipex 74 01 200 offers a much better ratio between the force required and cutting capacity.

The geometry of the cutting edges, joint and the handles has been designed for efficiency.

This tool is also the first choice for hard constant use, e.g. during assembly work, because its ergonomic design really conserves the strength of the user.

The benefits of these high leverage diagonal cutters do not lie solely in their cutting capacity, but are also plain to feel and see due to the hand-friendly shape of the handle.

These high leverage diagonal cutters are extremely stable due to their robust design with forged joint axle, yet quite light, weighing just 263 g.

One can see how good diagonal cutters are by the cut. Knipex high leverage diagonal cutters deliver best performance. In addition to the quality forged metal parts made of high performance chrome vanadium tool steel, the most important quality criteria at Knipex include their precise machining. The sharpness and angle of the cutting edges on the Knipex 74 01 200 are designed for top performance. The excellent machining of these high leverage diagonal cutters makes sure that the material to be cut is always cut cleanly. The high quality of the tool steel produced in Germany, the hardness of the cutting edges and the forged joint axle guarantee exceptional stability and a long service life.

• Compact high leverage diagonal cutters with forged joint axle

• Cut piano wire (spring steel wire) up to 2.5 mm

• Big quality in a compact format: only 200 mm long

• Low weight (263 g)

• Production according to high standards for best work results and a long service life

• Sits firmly in the hand thanks to ergonomic handle design and non-slip plastic coating on the handles

• Chrome vanadium electric steel, forged, oil hardened in multiple stages

• For very tough, continuous use

• High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio

• Precision cutting edges additionally induction-hardened (cutting edge hardness approx. 64 HRC), for all sorts of wire including piano wire

• Handles: Plastic

• Pliers: black atramentized

• Head: polished

• Handles: plastic coated

• Weight: 263 g

• Dimensions: 200 x 47 x 15 mm

• Standard: DIN ISO 5749

• REACH compliant: does not contain SVHC

• RoHS compliant: not applicable

• Cutting capacities medium hard wire (diameter): 4.2 mm

• Cutting capacities hard wire (diameter): 3.0 mm

• Cutting capacities piano wire (diameter): 2.5 mm
