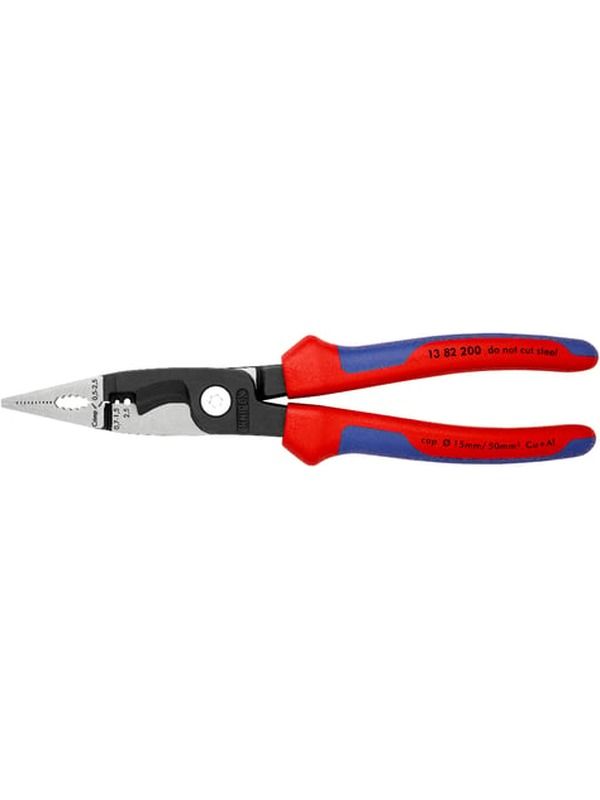

Knipex Pliers For Electrical Installation 200mm 13 82 200

Knipex Pliers For Electrical Installation 200mm

For cutting cable, for wire stripping, deburring, bending, gripping and crimping.

Due to their many functions, these universal pliers mean there is no need to constantly change tools. Just one tool is adequate for the most important, recurring work steps in electrical installation.

The electrical installation pliers save time, space and weight. At 200 mm long, they fit in any tool bag and with a weight of just 280 g they are light weight-especially compared to a number of individual tools.

The tips of the gripping surface of the installation pliers are smooth, enabling single conductors to be held and positioned without damaging them. Profiled gripping surfaces and a pipe grip are provided for flat and round materials. The induction hardened precision cutting edges produce clean cut Cu and Al cables up to 15 mm. Thanks to their non-slip multi-component grips, the installation pliers are safe and comfortable to use.

Two aspects are vital to the quality of a tool: the performance and durability. At Knipex, pliers are developed from the point of view of the user, and focus on their direct application. Knipex electrical installation pliers replace several tools. Uses are equally diverse-and last for several years of tough work. We forge our tools from quality materials, machine them with high precision on modern machinery and harden them carefully with multiple stage heat treatment. Every pair of Knipex pliers represents more than 130 years of specialist know-how.

• Compact multifunctional tool

• Six functions combined in one tool

• Cuts cable up to 15 mm

• Wire stripping capacities for single conductors: 0.75-1.5 mm and 2.5 mm

• Crimp die for end sleeves (ferrules) 0.5-2.5 mm

• Low weight (280 g)

• Handles with multi-component grips

• Forged from high grade special tool steel, oil hardened in multiple stages

• 6 functions in one pair of pliers

• To grip flat and round material, for bending, deburring, cutting cable, stripping and crimping wire ferrules

• Smooth surfaces near the tips grip single cores without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material

• Clear-cut outside edge on the gripping surfaces for working on flush-mounted junction boxes and deburring feed-through holes

• Stripping holes for conductors of 0.75 - 1.5 mm and 2.5 mm

• Crimping die for wire ferrules 0.5 - 2.5 mm

• Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm / 15 mm

• Slim dimensions for easy access

• Bolted joint: precise, zero backlash operation of pliers

• Article No: 13 82 200

• EAN: 4003773075080

• Pliers: black atramentized

• Head: polished

• Handles: with multi-component grips

• Weight: 266 g

• Dimensions: 200 x 85 x 20 mm

• REACH compliant: does not contain SVHC

• RoHS compliant: not applicable

• Cutting capacity copper cable, multiple-stranded: 15 mm

• Cutting capacity copper cable, multiple-stranded: 50 mm

• Stripping capacity for single strands: 0.75 - 1.5 mm / 2.5 mm

• Capacity in square millimetres: 0.5 - 2.5 mm

• AWG: 1 / 0
