Matador Plier Assortment 3Pc Comb. Plier/Side Cutter/Straight Round
Knipex Plastic Pipe Cutter 185mm
Knipex Wire Rope Cutter 190mm 95 61 190
MPN: 95 61 190
|
RPI: 3267825
or 4 interest-free payments of
$25,000.00
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time
(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Type in your postcode or suburb to get an estimate on postage cost.
Save more when you buy more with combined postage
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
| Brand |
|
| GTIN |
4003773040651 |
| MPN |
95 61 190 |
| Handling Time |
7-10 Business Days |
| Return Policy |
No Return (Unless Manufacturer Defect) |
| Warranty |
Manufacturer Warranty |
| AWG |
8 |
| Cutting capacites iron (diameter) |
4 mm |
| Cutting capacities medium hard wire (diameter) |
4.0 mm |
| Cutting capacities piano wire (diameter) |
2.5 mm |
| Cutting capacities wire rope (diameter) |
5.0 mm |
| Cutting capacity copper cable, fine-stranded (diameter) |
6.0 mm |
| Cutting capacity copper cable, multiple-stranded (diameter) |
7.0 mm |
| Cutting capacity copper cable, multiple-stranded |
10 millimeters |
| Dimensions |
190 x 60 x 20 mm |
| Handles |
plastic coated |
| Head |
polished |
| REACH compliant |
does not contain SVHC |
| RoHS compliant |
not applicable |
| Weight |
310 g |

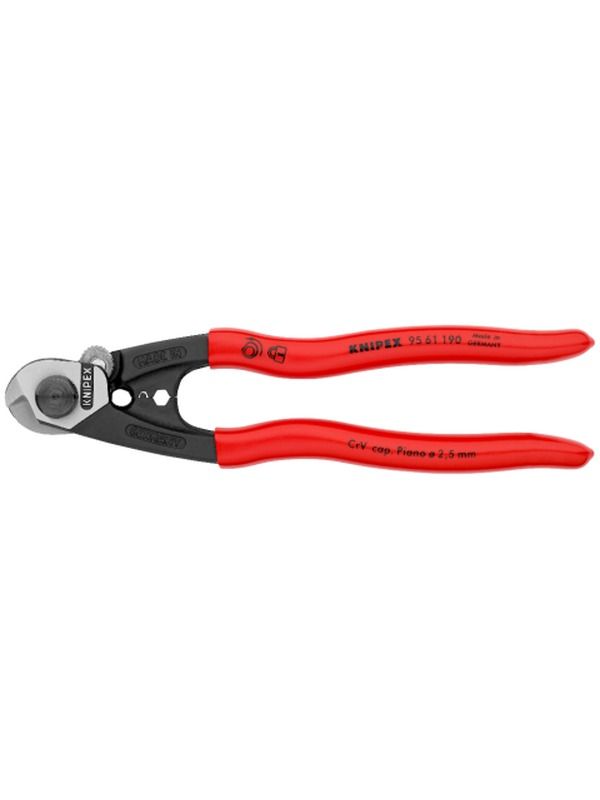

Knipex Wire Rope Cutter 190mm
Overview
Wire rope cutters with two crimping dies for end sleeves on Bowden sleeves and end caps for Bowden cables
Comfortable work due to manageable, slim design and inset opening spring
Screwed joint for accurate blade guidance, adjustable
Energy-saving work due to very high transmission ratio
Cutting edge hardness approx. 64 HRC
Cutting capacities: Cu cable, stranded up to 7 mm; medium-hard wire up to 4 mm, hard wire rope up to 5 mm; piano wire up to 2.5 mm
Chrome vanadium high-performance steel, forged, oil-hardened
Handles coated with non-slip plastic
Weight 314 g
Length 190 mm
Features
With two crimping dies for end caps on Bowden cable sheaths and end ferrules for traction cables
Comfortable work thanks to handy, slim design and internal opening spring
Bolted joint for precise blade guidance, re-adjustable
High leverage for reduced effort
Cutting edge hardness approx. 64 HRC
Specifications
Article No.: 95 61 190
EAN: 4003773040651
Head: polished
Handles: plastic coated
Weight: 310 g
Dimensions: 190 x 60 x 20 mm
REACH compliant: does not contain SVHC
RoHS compliant: not applicable
Cutting capacity copper cable, multiple-stranded: 10 mm
Cutting capacity copper cable, multiple-stranded (diameter): 7.0 mm
Cutting capacity copper cable, fine-stranded (diameter): 6.0 mm
Cutting capacities wire rope (diameter): 5.0 mm
Cutting capacities medium hard wire (diameter): 4.0 mm
Cutting capacities piano wire (diameter): 2.5 mm
Cutting capacites iron (diameter): 4 mm
AWG: 8
