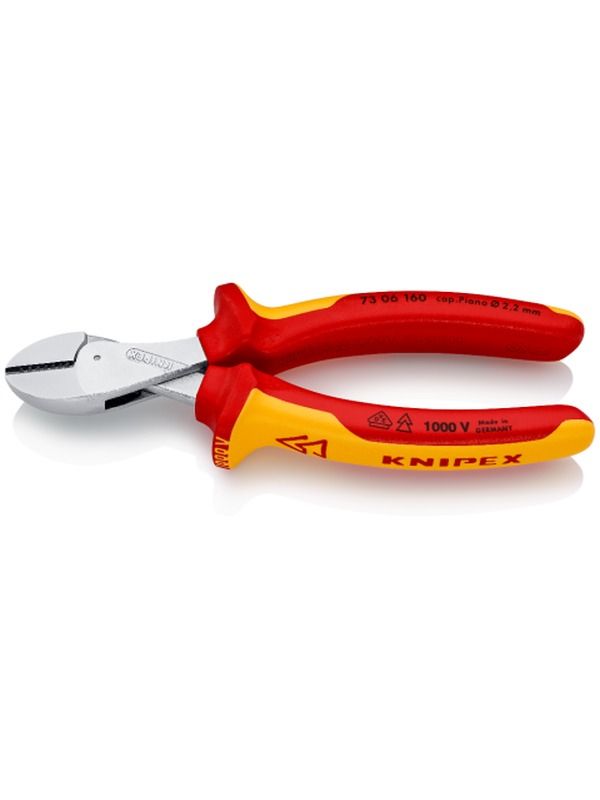

Knipex X-Cut Pliers Compact Diagonal Cutter High Lever Transmission 73 06 160

Knipex X-Cut Pliers Compact Diagonal Cutter High Lever Transmission

• High transmission compact diagonal cutters

• Accurate cuts on soft Cu wire and other soft types of wire up to 4.8 mm

• Also cuts hard wire up to 2.0 mm, e.g. fence wire and nails

• Also suitable for piano wire (spring steel wire)

• Box joint for guide on both sides and less load on the rivet

• Compact format: only 160 mm long

• Low weight (175 g)

• Production according to higher standards for optimal work results and a long service life

• Sits firmly in the hand thanks to insulating multi-component grips

• Forged from high performance chrome vanadium steel, oil hardened in multiple stages, chrome-plated and insulated

• Cuts finest strands as well as multi-core cables and piano wires

• Powerful, light and universal

• High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio

• Box-joint design: highest stability with low weight

• Doubly supported joint axis for heavy duty

• Large opening width for thicker cables

• Cuts precisely, even through fine copper wires

• Compact, low-weight construction

• Universally usable, in the assembly, maintenance and production

• 40% less force required compared with standard diagonal cutters of the same length

• Article No.: 73 06 160

• EAN: 4003773075141

• Pliers: chrome-plated

• Head: chrome-plated

• Handles: insulated with multi-component grips, VDE-tested

• Weight: 175 g

• Dimensions: 160 x 60 x 28 mm

• Standard: DIN ISO 5749 DIN EN 60900 IEC 60900

• REACH compliant: does not contain SVHC

• RoHS compliant: not applicable

• Cutting capacities soft wire (diameter): 4.8 mm

• Cutting capacities medium hard wire (diameter): 3.8 mm

• Schneidwerte harter Draht (Durchmesser): 2.7 mm

• Cutting capacities piano wire (diameter): 2.2 mm

• Cutting capacity copper cable, multiple-stranded: 12.0 mm

• VDE tested: yes
