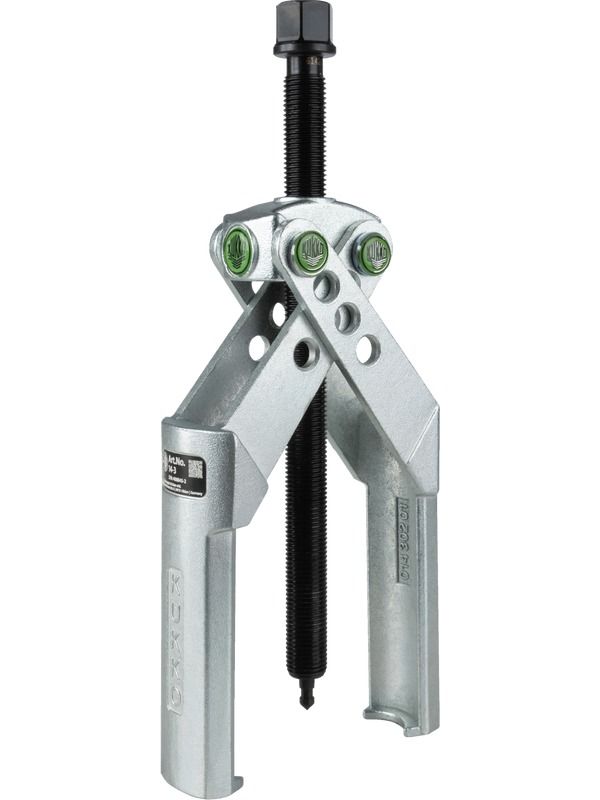

Kukko 2-Arm Puller with Self-Clamping Intersection Puller Legs
OverviewThe 2-arm puller with self-clamping, intersecting puller legs is used to pull pinions, pulleys, bearings and similar components for narrow gaps. Self-locking retaining pins guarantee quick and easy adjustment for variable clamping width ranges. The puller is self-tightening and easy to use. During the extraction process, the scissor-like leg guide presses the claws firmly against the part to be extracted. This ensures a secure hold at all times.
ApplicationFor pulling off pinions, pulleys, bearings and similar components for narrow gaps
Quick and easy mounting of the puller legs
Extremely wide span range due to variable mounting of the puller legs
Span width and clamping depth can be customised
If space is limited, the two puller legs can be fitted first and then
fixed in place with the crossbar and retaining pins in the second step
Self-locking retaining pins that do not fall out during work thanks to ball lock
Puller legs can be reversed, increasing the clamping range many times over
Total width: 166mm
Total depth: 51mm
Total height: 220mm
Net weight: 1.28kg
Width across flats: 17mm
Span outside pull-off (min): 5mm
Span outside pull-off (max): 140mm
Clamping depth outside pull-off: 160mm
Hook root thickness at the tip (claw thickness): 4mm
Hook base width (claw width): 30mm
Hook base depth usable (claw depth): 5mm
Total hook root depth (total claw depth): 18mm
Total claw thickness (claw distance to base surface): 4mm
Max torque (Nm): 100Nm
Material: Tool steel
Scale division: No
