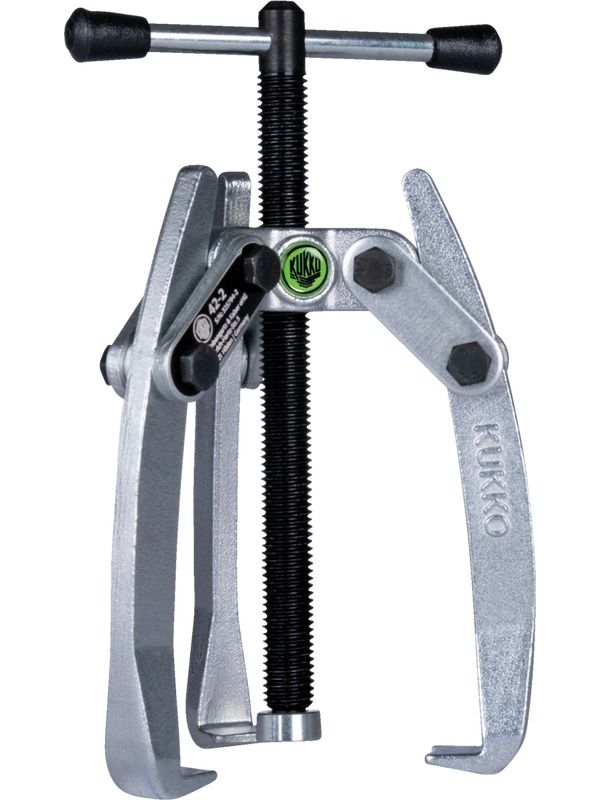

Kukko 3-Arm Universal Puller with Swivelling Puller Legs 42-2

Kukko 3-Arm Universal Puller with Swivelling Puller Legs

The 3-arm universal puller with swivelling puller legs is used for pulling off bearings, gears and washers in all common sizes for crafts, workshops and industry. It can be used to loosen any component that sits on a shaft and is freely accessible from the outside. The swivelling puller legs ensure maximum freedom of movement for individual adjustment to the respective clamping width and depth, even in restricted ambient conditions. The 3-arm design guarantees an even load distribution and thus a particularly secure hold on the part to be extracted. Within the 42 series, there are different versions of the puller. Up to model 41-2, the puller is equipped with a T-handle and a flat thrust piece for working in confined spaces. From model 42-3 onwards, the puller has a hexagonal drive and a dual spindle tip. This allows the greatest pulling forces to be achieved (3 to 7 t).

For pulling off bearings, gear wheels & discs.

• Swivelling puller legs enable work in the tightest of spaces with simultaneous individual adjustment to the span width and depth

• 3-arm design ensures an even distribution of force and allows for greater pull-off forces

• Anti-slip device on the spindle head for safe working with spanners

• Spindle run-out to protect the thread

• Safe positioning of the spindle due to rotatable spindle tip both on smooth surfaces and for centring (Switch Technology) (applies from size 42-3)

• Integrated, free-moving T-handle guarantees manual spindle drive in confined spaces (applies up to size 41-2)
