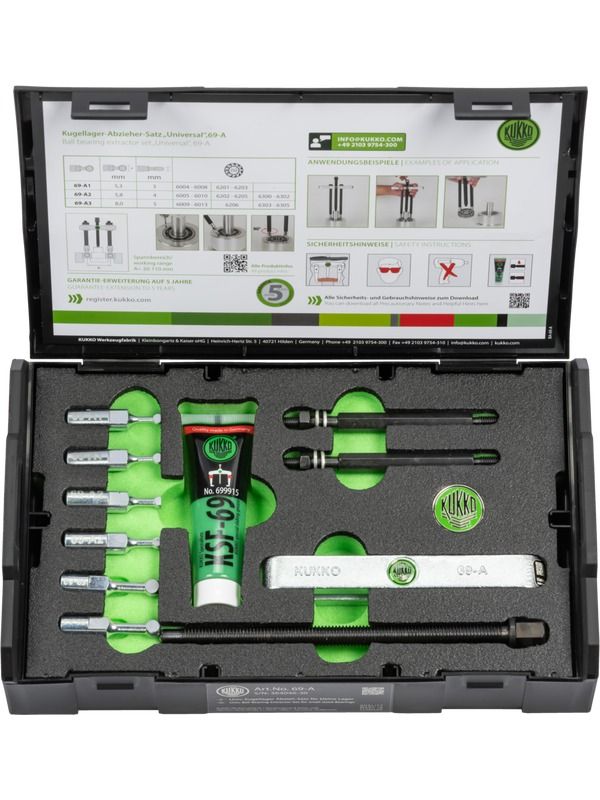

Kukko Ball Bearing Extraction Set Universal
OverviewThe Series 69 ball bearing puller sets are used to remove ball bearings of all types that are located in a housing and/or on a shaft in trade, industry and workshops. Although the ball bearing in question cannot be reused during this process, the application guarantees safety and the integrity of the associated housing or shaft in addition to minimising the amount of work involved. The 69 series impresses with its variability; three different sets are available depending on the required bearing ball diameter, enabling ideal and customised use.
ApplicationFor the extraction of ball bearings of all types which are
Versatile application with no damage to the shaft
Application-orientated compilation for universal use
Quick and safe selection thanks to labelling of the bearing adapters
Storage in the box makes it easy to keep track of the completeness of the set
Total width: 127mm
Total depth: 21mm
Total height: 170mm
Net weight: 1.85kg
Width across flats: 12mm
Clamping depth: 100mm
Span separation pull-off (min): 20mm
Clamping width separating pull-off (max): 110mm
Ball bearing ISO: 6004, 6005, 6006, 6007, 6008, 6009, 6010, 6011, 6012, 6013, 6201, 6202, 6203, 6204, 6205, 6206, 6300, 6301, 6302, 6303, 6304, 6305
Bearing adapter diameter: 5.3, 5.8, 8 mm
