Kukko Ball Joint Puller 128-5
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.

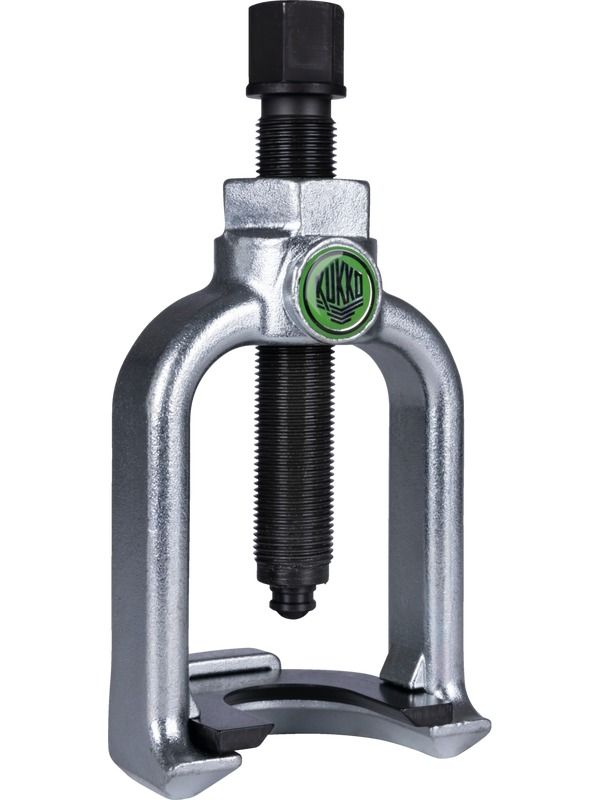

Kukko Ball Joint Puller
OverviewThe bell-shaped ball joint puller from the 128 series is used to press out the ball studs when removing ball joints and tie rod ends on tie rods for all vehicle types. The puller enables damage-free work and is ideal when there is a lot of space available. The 128 series impresses with its quick and easy operation and is available in various sizes.
ApplicationFor pressing out the ball journals when removing ball joints as well as tie rod ends on tie rods
- Thanks to its simple but effective design, the direct pressure ball joint puller is particularly suitable for quick and uncomplicated use
Total width: 102mm
Total depth: 81mm
Net weight: 1.84kg
Width across flats: 24mm
Max torque (Nm): 250Nm
Case material: Tool steel
Insert depth: 100mm
Total length of the spindle: 170mm
Fork opening diameter: 46mm
Distance from center of spindle to tip of fork: 25mm
Total fork thickness: 19mm
Fork thickness at the tip: 9mm
Diameter at fork radius: 79mm
