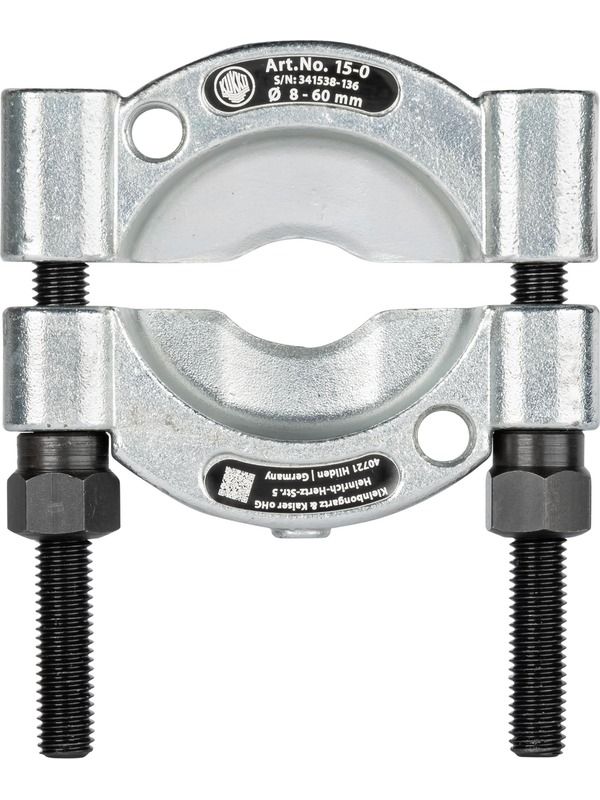

Kukko Disconnector 15-0

Kukko Disconnector

The Series 15 separators are used together with the Series 18 pullers for removing ball bearings, roller bearings, inner rings and other flat parts in trade, industry and workshops when there is not enough space for pulling hooks. The separating and extracting process is able to gently separate these parts before they can be extracted from the outside.

Together with the extractors of series 18 for extracting ball bearings, roller bearings, inner rings and other parts lying flat

• The sharp cutting edges allow peeling where other types of peeling are inapplicable

• The screw connection of separator and extractor ensures the highest stability during extraction

• If the separating jaws are screwed into the extractor the other way round, the contact surface is enlarged and extracted more gently

• Press the sharp cutting edges of the separator behind the part

• Clamp the cut-off jaws with the aid of the pressure spindle by evenly tightening the adjusting nuts on the side bolts of the cutoff device and make sure that the cut-off blades are seated up to the stop under the part to be removed

• Screw the puller's pull bolts into the threaded holes of the separator as far as they will go

• Hold the separating device and pull the part off safely and carefully by tightening the clamping nut

• Total Width: 100mm

• Total Depth: 19.5mm

• Total Height: 130.5mm

• Width across flats: 17mm

• Cutting Edge Thickness at the tip: 0.3mm

• Rear Cutting Edge Thickness: 5.5mm

• Total Cutting Edge Height: 39.5mm

• Usable Snow Depth: 21mm

• Weight: 0.695kg

• Cut-Off Diameter (Min): 8mm

• Separating Diameter (Max): 60mm

Product Data Sheet
