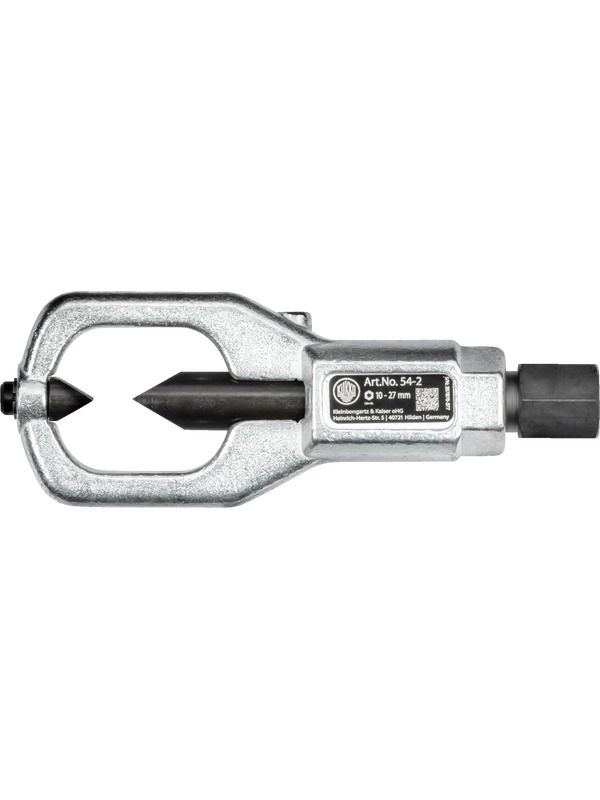

Kukko Double-Edged Mechanical Nut Splitter
OverviewThe double-edged, mechanical nut splitter is used for splitting non-detachable, rusted or overtightened nuts in grades 5, 6 and 8. The threaded pin remains undamaged during this blasting process. When the spindle is tightened, the two sharp, bevelled cutting edges of the chisel penetrate deep into the nut until it is blown off. Thanks to the double blasting effect, only one work step is necessary.
ApplicationFor blasting undetachably stuck, rusted or over-tightened nuts of grade 5, 6 and 8
The nut can be blasted without damaging the threaded bolt
Pullback Technology guarantees easy turning back of the chisel from the cracked nut
Double blasting effect saves time
Also suitable for use in pipework construction and other industries
Total width: 49mm
Total depth: 22mm
Net weight: 0.48kg
Width across flats: 17mm
Material: Tool steel
Total length: 130mm
Width across flats of the nut (min): 10mm
Width across flats of the nut (max): 27mm
Chisel cutting width: 14mm
Length from spindle head to contact surface: 110mm
Thread size of the nut: M6, M7, M8, M10, M12, M14, M16, M18
Width across flats of the nut (DIN): 10, 11, 13, 17, 19, 22, 24, 27mm
Width across flats of the nut (ISO): 10, 11, 13, 16, 18, 21, 24, 27mm
Width across flats of the nut (DIN EN 14399): 22, 27mm
