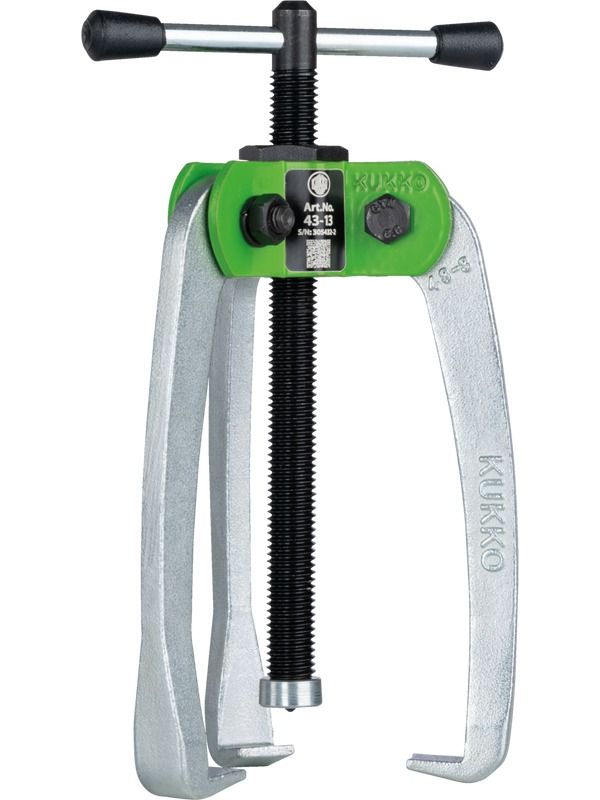

Kukko Handy 3-Arm Small Parts Puller w/ Power-Transmitting/Self-Centring 43-13
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.
Kukko Handy 3-Arm Small Parts Puller w/ Power-Transmitting/Self-Centring
OverviewThe handy 3-armed small parts puller with power-transmitting and self-centring puller legs is used for the sensitive removal of small bearings, gears and discs for narrow, hard-to-reach spaces. The compact and space-saving design of the puller with narrow legs that widen towards the claw is particularly suitable for electric motors. The free-moving pin on the T-handle guarantees comfortable, one-handed tightening of the spindle in the tightest of spaces.
ApplicationFor sensitive extraction of small bearings, gear wheels and discs for narrow, poorly accessible gaps
Self-centring of the legs by manually tightening the spindle (Autogrip Technology)
Integrated, free-moving pin on the T-handle guarantees manual spindle drive in the tightest of spaces
Slim design of the legs makes it possible to reach places that are difficult to access
No further tools are required for the pulling process
Total width: 100mm
Total depth: 22mm
Total height: 125mm
Net weight: 0.335kg
Span outside pull-off (min): 0mm
Span outside pull-off (max): 80mm
Clamping depth outside pull-off: 80mm
Hook root thickness at the tip (claw thickness): 2mm
Hook base width (claw width): 11mm
Hook base depth usable (claw depth usable): 10.5mm
Total hook root depth (total claw depth): 20.5mm
Total claw thickness (claw distance to base surface): 5mm
Material: Tool steel
Scale division: No
