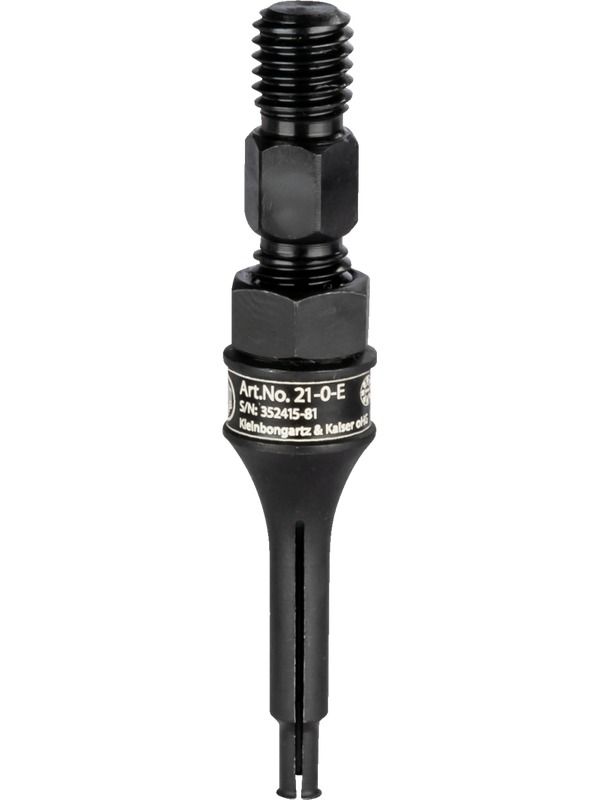

Kukko Internal Segment Extractor 4.8-6.5mm Spread 30mm Insertion Depth 21-0-E
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.
Kukko Internal Segment Extractor 4.8-6.5mm Spread 30mm Insertion Depth
OverviewThe segmented internal extractors of the 21-E series with M10 thread are used for extracting flat bearings, bearing outer rings, bushes and seals in trade, workshops and industry. The segmented design with extra-fine gripping edges enables the safe extraction of flat parts. The 21 series impresses with its compatibility and variety of applications. Depending on the application, there are numerous variants of the segmented internal extractors. They are used either together with counter stays or with slide hammers.
ApplicationFor extracting flat bearings, bearing outer rings and bushes
Thanks to its segmentation and fine spindle, the segment extractor is ideal for precise and gentle work
Thanks to the mechanical spindle, even bearings that are tightly seated on the rear wall are pulled out safely and quickly
Shaping ensures a secure grip when mounting and swivelling out bearings or inner rings that form a blind hole
The thread adapters for internal extractors that may be required are included in the scope of delivery of the counter stays and slide hammers
Total height: 92mm
Net weight: 0.5kg
Width across flats: 10mm
Width across flats: 13mm
Span inside pull-out (min): 4.8mm
Span inside pull-out (max): 6.5mm
Material: Tool steel
Diameter of the extractor: 15mm
Mounting thread (nominal dimension): M10
Insertion depth of internal extractor: 30mm
