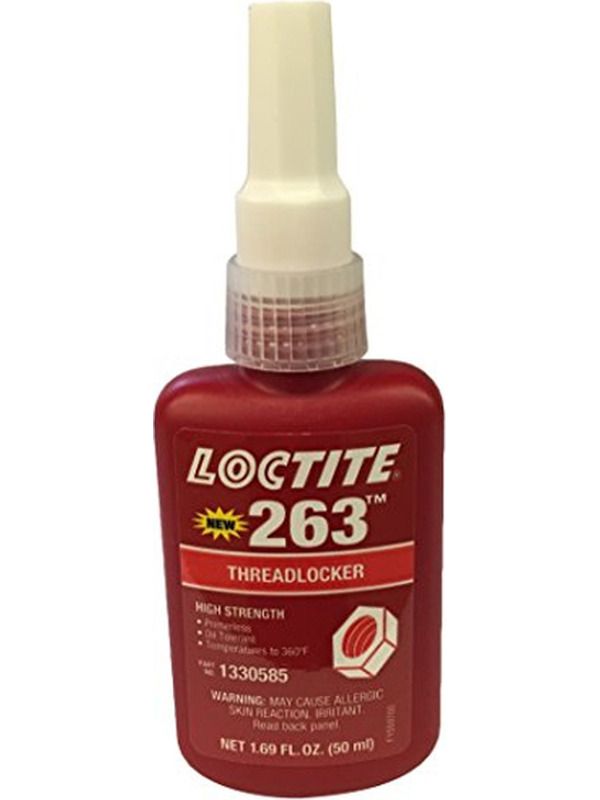

Loctite 263, Stud Lock High Strength Threadlocker, 50ml 263-50ML
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.
Loctite 263, Stud Lock High Strength Threadlocker, 50ml Overview
Dual cure, acrylic dimethacrylate ester fluorescent threadlocker designed for the permanent locking and sealing of threaded fasteners.
LOCTITE 263 is a red, dual cure, acrylic dimethacrylate ester fluorescent threadlocker designed for the permanent locking and sealing of threaded fasteners. It cures between close fitting metal surfaces and prevents loosening and leakage from shock and vibration. It works on active metals (e.g. brass, copper) and passive substrates such as stainless steel and plated surfaces.
Loctite 263, Stud Lock High Strength Threadlocker, 50ml Features
-
Designed for the permanent locking and sealing of threaded fasteners
-
Prevents loosening and leakage from shock and vibration
-
Particularly suited for heavy duty applications such as studs into motor housings where high strength is required
-
Provides robust curing performance
-
Offers high temperature performance and oil tolerance
Loctite 263, Stud Lock High Strength Threadlocker, 50ml Technical Information
|
Agency Approvals / Specifications |
CFIA Listed, NSF/ANSI 61 |
|
Application Method |
Dispense Gun, Pressure |
|
Applications |
Thread Sealing, Threadlocking |
|
Colour |
Red |
|
Cure Type |
Anaerobic Cure |
|
Fixture Time |
10 min. |
|
Fixture Time Temperature |
10 C |
|
Full Cure Temperature |
22 C |
|
Full Cure Time |
24 hr. |
|
Key Characteristics |
Corrosion Inhibiting, Disassembly: Disassembly with Heat, Fluorescent, General Purpose, Oil Tolerant, Primerless, Strength: High Strength |
|
Number of Components |
1 Part |
|
Physical Form |
Liquid |
|
Specific Gravity |
1.1 g/l |
|
Specific Gravity Temperature |
25 C |
|
Substrates |
Metal |
|
Technology |
Acrylic |
|
Torque Break on M10 Steel |
290 in./lb. |
|
Torque Prevail on M10 Steel |
290 in./lb. |
|
Viscosity Max |
600 |
|
Viscosity Min |
400 |
|
Viscosity Temperature |
25 C |
|
Viscosity Unit |
mPa.s (cP) Brookfield |
