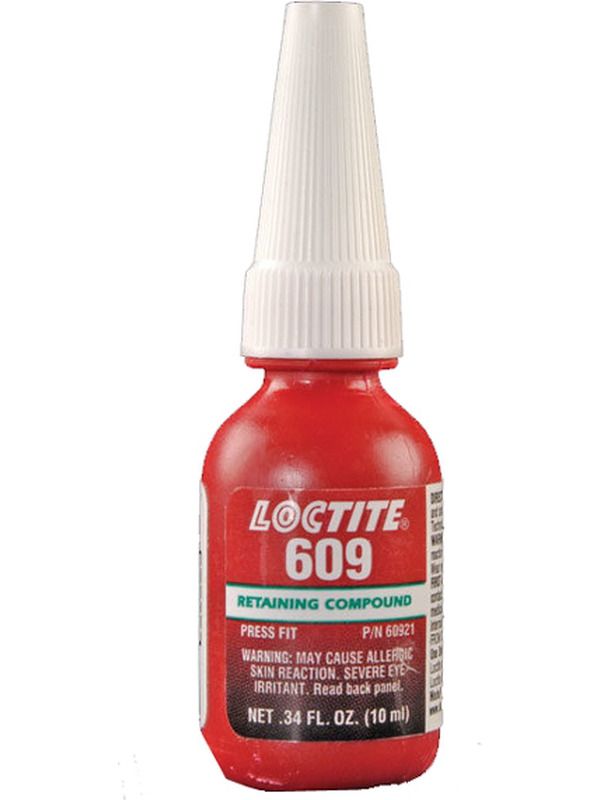

Loctite 609, Medium/High Strength Retaining Compound, 10ml 609-10ML
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.
Loctite 609, Medium/High Strength Retaining Compound, 10ml Overview
High strength methacrylate ester acrylic retaining compound designed for the bonding of cylindrical fitting parts.
LOCTITE 609 is a green, high strength methacrylate ester acrylic retaining compound designed for the bonding of cylindrical fitting parts. The product cures in the absence of air between close fitting metal surfaces. Typical applications include rotor to shafts in fractional and subfractional horsepower motors. Locks bushings and sleeves in housings on shafts. Augments press fits.
Loctite 609, Medium/High Strength Retaining Compound, 10ml Features & Benefits
-
Low viscosity
-
Prevents loosening and leakage from shock and vibration
-
Augments press fits
-
Tested to the lot requirements of Military Specification Mil-R-46082B (this is a regional approval)
Loctite 609, Medium/High Strength Retaining Compound, 10ml Technical Information
|
Agency Approvals / Specifications |
ASTM D5363, CFIA Listed, MIL-R-46082B for existing designs |
|
Application Method |
Pressure |
|
Applications |
For Close Fitting Parts, Retaining |
|
Colour |
Green |
|
Cure Type |
Anaerobic Cure |
|
Fixture Time |
10 min. |
|
Fixture Time Temperature |
10 C |
|
Full Cure Temperature |
22 C |
|
Full Cure Time |
24 hr. |
|
Key Characteristics |
Fluorescent, Strength: High Strength, Viscosity: Low Viscosity |
|
Number of Components |
1 Part |
|
Physical Form |
Liquid |
|
Shear Strength Unit, Steel |
psi |
|
Shear Strength, Steel |
2300 |
|
Specific Gravity |
1.1 g/l |
|
Specific Gravity Temperature |
25 C |
|
Substrates |
Metal |
|
Technology |
Acrylic |
|
Viscosity |
125 mPa.s (cP) Brookfield |
|
Viscosity (#7sp/20/rpm) |
125 mPa.s (cP) Brookfield |
|
Viscosity Temperature |
25 C |
