CENTERBORE/CRANK BOSS: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft boss fit may have variations from slip-fit to slight interference. Interference at the crankshaft can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
NOTE 2:
This Flywheel will not bolt up to the OEM 2012-Up Pressure Plate with factory 9 bolt pressure plate pattern and 8 mm Dowel Pins.
Disc Diameter
10.5In./11In.
Ring Gear
164 tooth
Clutch Pattern 2
2001.5-2010 11In. Diaphragm with Dowl Pin Hole
Clutch Patterns
10.5In. Mustang Diaphragm 1986-2000 with Dowel Pin Holes

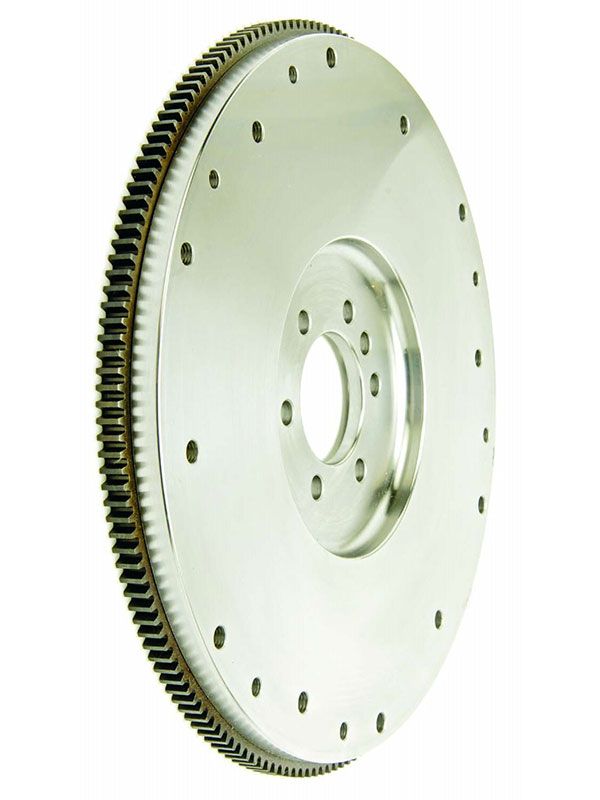

McLeod SteelFlywheels are perfect forstreet applications where easystop light acceleration isdesired. They are alsorecommended for rock crawlersand off road driving. Oursteel flywheels are CNCmachined from billet alloysteel. They have 1045 hardenedsteel ring gears.
