CENTERBORE/CRANK BOSS: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft boss fit may have variations from slip-fit to slight interference. Interference at the crankshaft can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
Disc Diameter
10.5In./11In.
Ring Gear
164 tooth
Clutch Pattern 2
2001.5-2004 11In. Diaphragm with Dowl Pin Hole
Clutch Patterns
10.5In. Mustang Diaphragm 1986-2000 with Dowel Pin Holes

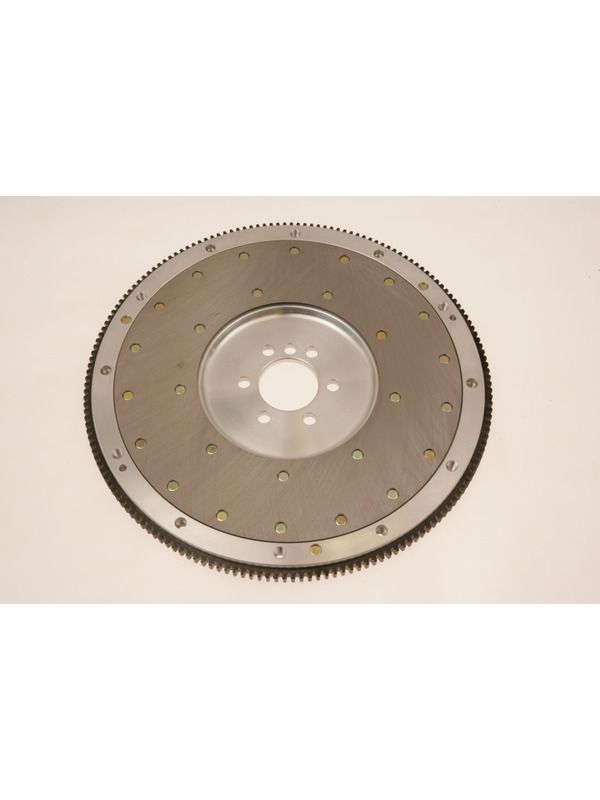

McLeod Flywheel Aluminium For Ford 1996-10 4.6L 0Bal 15bs 6Blt Crank 164T
McLeod Aluminum Flywheels are ideal for numerous applications such as supercharged or turbocharged engines. These flywheels are ideal for higher horsepower engines and combinations that achieve rapid RPM levels. McLeod Aluminum Flywheels are CNC machined from 6061 T6 aluminum and come with a replaceable steel friction plate and 1045 steel hardened ring gear.
