This flywheel does NOT contain 2012-Up GT/Boss 302 9 bolt pressure plate pattern.
NOTE 2:
CENTERBORE/CRANK BOSS: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft boss fit may have variations from slip-fit to slight interference. Interference at the crankshaft can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
Ring Gear
164 tooth
Clutch Pattern 2
2001.5-2004 11In. Diaphragm with Dowl Pin Hole
Clutch Patterns
10.5In. Mustang Diaphragm 1986-2000 with Dowel Pin Holes

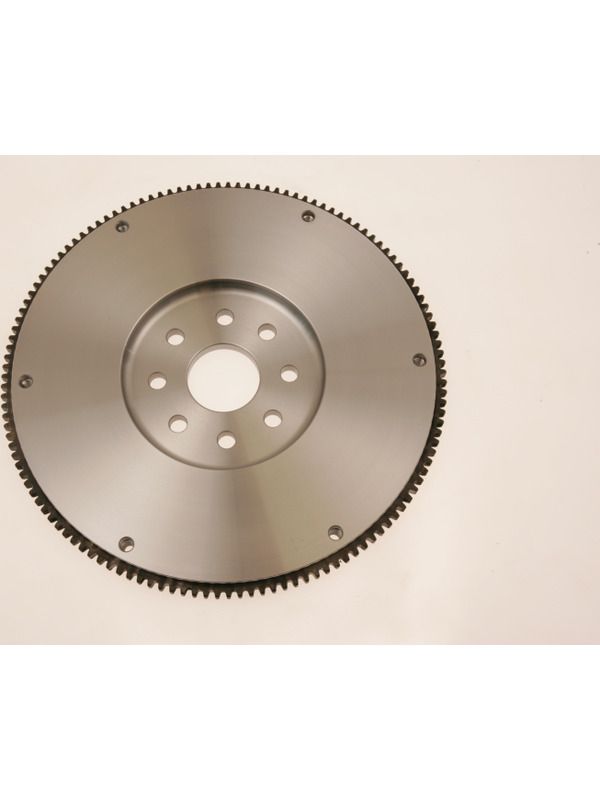

McLeod Flywheel Steel For Ford 1996-04 4.6L 2011-17 3.7L 5.0L 0Bal 30lbs 8Blt
Notes: McLeod Steel Flywheel For Ford 4.6/5.4L 1996-2001.5 Multi Patterns 8 Blt Crk 164
McLeod steel flywheels are perfect for street applications where easy stop light acceleration is desired. Steel flywheels come in various weights and dimensions. For race applications, a heavier steel unit is ideal for helping launch a heavy car with a smaller engine with less torque and horsepower. They are CNC machined from billet alloy steel and have 1045 hardened steel ring gears.
