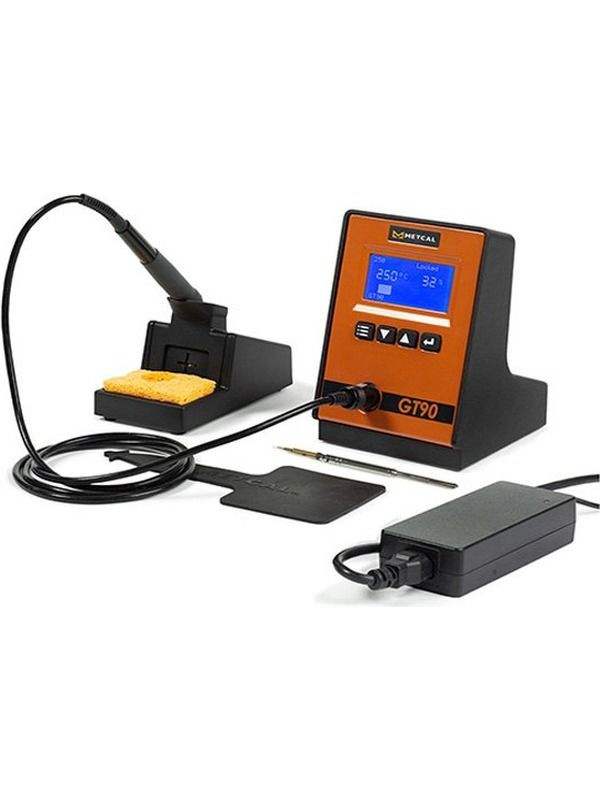

Metcal 90 Watt GT Soldering System
OverviewGT90 Soldering System is an adjustable temperature station that uses inductive technology as the heating mechanism. The complete system includes a soldering station with an external Power supply, a hand-piece, and a workstand to support a variety of soldering and rework applications using the associated tips and Cartridges.
The GT adjustable temperature technology has a fast and repeatable heating mechanism and encompasses the convenience of temperature adjustment with the stability and performance of inductive heating. This gives the GT systems a significant performance advantage with much faster time to temperature, thermal recovery and temperature stability during soldering versus competitors in the same product category.
GT90 is a single port soldering station with best in class performance, 90 watts of Power, and ideal for single iron applications on the production line. The GT90 is supplied with a replaceable 90W external Power supply allowing for a more compact design to save space on the bench and improve the quality and life of the system.
Inductive heating systems offering best in class performance
Adjustable Temperature
Intuitive 4 button user interface
Wide variety of Cartridge and tip options
Compact to minimize the workbench footprint
Programmable password lock-out and temperature range limits
Standby and sleep settings to increase tip life
USB port to Power accessories and firmware updates
GT90 Power Station with Adapter
GT-HP-T4UF Hand-Piece
GT-HC-T4 Heater Cartridge
GT-WS Work Stand
Note: Tips sold separately - compatible tips available to purchase HERE
SpecificationsInput Line Voltage: | 100 - 240 VAC, grounded circuit |
Input Frequency: | 50/60 Hz |
Power Output: | 90 W max. |
Output Line Frequency: | 465 kHz |
Heating Method: | Inductive Heating |
Display | 2.8" Monochrome LCD Display |
Controls: | 4 tactile buttons |
Operation: | Single Port |
Tip-to-Ground Potential: | < 2 mV |
Tip-to-Ground Resistance: | < 2 Ohm |
Ground Detection: | Permanent |
Surface Resistivity: | 105 - 109 , ESD-save |
Idle Temperature Stability: | +- 1.1 C in still air |
Tip Temperature Accuracy: | Meets or Exceeds IPC J-STD-001 |
Communications: | 1 x USB A connector |
Warranty: | 1 year |
Dimensions (w x d x h): | 110 x 125 x 160 mm (4.3" x 4.9" x 6.1") |
Weight: | 1.68 kg (3.7 lb.) |
Certication: | CE, TUV |
Power-Connector: | Mini-DIN |
Ambient Operating Temperature: | 10 to 40 C |
Maximum Enclosure Temperature: | 55 C |
