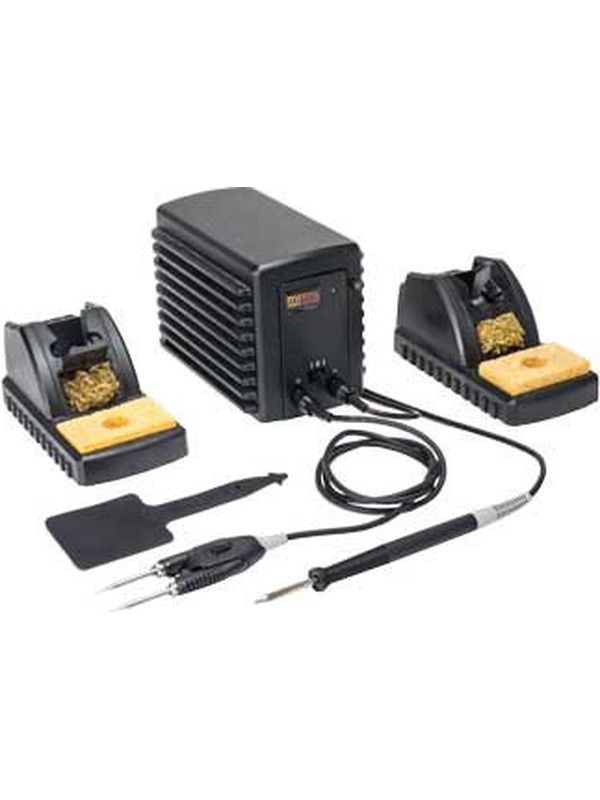

Metcal Dual Output 1 Prec Twzr 1 Cartr Solder Handpiece
Metcal Dual Output 1 Prec Twzr 1 Cartr Solder Handpiece
Like the MFR-1100 Series, the MFR-2200 offers the same choice of multiple hand-pieces with two ports. Flexibility can be increased by locking both systems together. The MFR-2241 includes a Tweezer Hand-piece and a Soldering Cartridge Hand-piece.
Metcal Dual Output 1 Prec Twzr 1 Cartr Solder Handpiece Features and Benefits
- SmartHeat Technology provides exceptional power for high thermal demand applications.
- Single or Dual simultaneous outputs allow for single or dual hand-piece use.
- Four hand-pieces available for increased application solutions for soldering and rework on one system.
- Each hand-piece has a comprehensive range of cartridges or tips for maximum flexibility.
- Hand-pieces are ergonomic for operator safety and comfort
Metcal Dual Output 1 Prec Twzr 1 Cartr Solder Handpiece Product Comprises of
- MFR-H4-TW Hand-piece, Tweezers Cartridge
- MFR-PS2200 Power Supply, Dual Simultaneous Output
- MFR-WSPT Workstand for Tweezers Hand-piece
- MFR-H1-SC Hand-piece, Soldering Cartridge
- WS1 Sleep Workstand
NOTE: No tip/cartridge included
Tips / Cartridges Series compatible with this system:
- SxP Soldering Cartridges
- RxP Rework Cartridges
- TxP Tweezer Cartridges
| Technical Information | |
| Input Line Voltage / Frequency: | 100- 240 VAC , 50/60 Hz grounded circuit |
| Power Consumption: | 130 Watts maximum |
| Output Power Maximum: | 60 Watts max. at 22C per output (two outputs) |
| Idle Temperature Stability: | 1.1C (2F) |
| Ambient Operating Temperature: | 10- 40C (50F - 104F) |
| Maximum Enclosure Temperature: | 55C (131F) |
| Power Cord 3-Wire: | 183cm (18/3") SJT (S = 600 Volt Service Cord, J = JuniorService - 300 Volt, T = Thermoplastic) |
| Hand-piece Cable Length: | L=122cm (48"), burn resistant, ESD safe |
| Hand-piece Connector: | 8-pin cicular DIN |
| Tip-to-Ground Potential: | < 2mV |
| Tip-to-Ground Resistance: | < 2 ohms |
| Certification / Marking: | cTUVus, CE |
| Power Supply Dimensions w x d x h : | 170mm x 200mm x 152.5mm (7" x 8" x 6") |
| Workstand Dimensions w x d x h: | 100 mm x 200 mm x 100 mm (4" x 8" x 4") |
| Surface Resistivity | 105-109 Ohms |
